Industrial
Trystar products provide safe and reliable power solutions and welding equipment for demanding job sites ranging from oil fields and refineries to major construction sites and shipyards. Whether there is permanent or temporary power available on site, Trystar products provide a wide range of output requirements with varying voltage, amperage and input configurations. All of our products are built for safety and longevity in the most extreme environments, and can be customized to meet your exact requirements.
Our Products:
Overbuilt in Every Detail
Better engineered and better built: That’s why our products last significantly longer than the competition, even under the most demanding conditions. And if you don’t see what you need, we’ll make it.

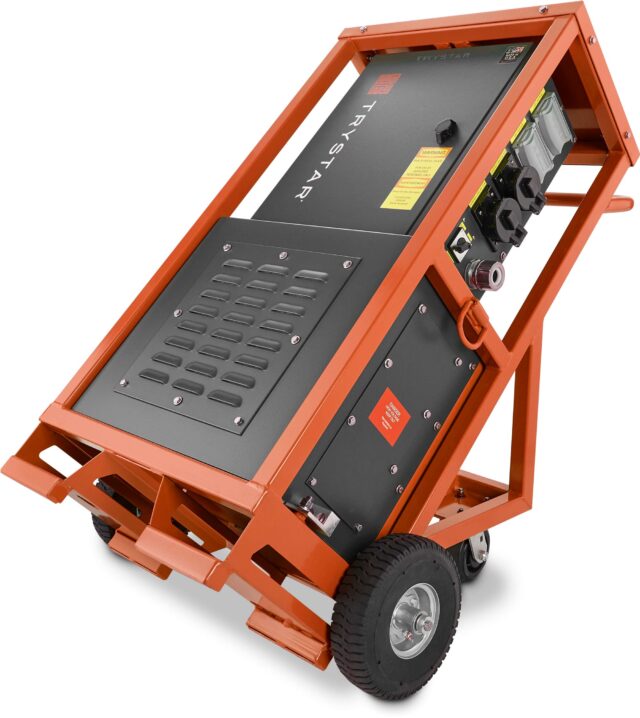

Dolly-Style Transformer
- Size range: 9kVA-15kVA, step up or step down, to/from a variety of voltages
- Input options: Cord grip, 16 series panel mounts, hardwire, and more
- Output options: Variety of receptacles, 16 series panel mounts, hardwire, and more
- Other features: Primary and secondary breakers, three phase or single phase, UL 50 Listed, UL 1640 Listed and/or C-ETL/ETL 1640 Listed, NEMA 3R or NEMA 4X, all aluminum construction or all stainless steel construction, heavy-duty dolly-style cart, custom powder coat, custom UV-printed graphics, made in USA
Welding Rack
- Size range: 2-pack rack – 12pack rack
- Input options: Cord grip, hardwire, and more
- Output options: Variety of receptacles, hardwire, and more
- Other features: UL 50 Listed, UL 1640 Listed and/or C-ETL/ETL 1640 Listed, NEMA 3R or NEMA 4X, voltage selector switch from 208V-480/600V, adapts to fit Miller, Lincoln, ESAB, and Thermadyne welders, durable steel construction, custom powder coat, custom UV-printed graphics, made in USA
Industrial Welding Cable
- Description: Premium arc welding cable is furnished with 30 ga. (Class K) flexible soft drawn electrolytic copper. A vinyl insulator separates the outer sheath, a -49°C to +105°C elastomer compound. Trystar cable is RoHS Compliant. It exhibits excellent oil and water resistance, resists abrasion and is flexible in cold weather. It is rated at 600 volts for intermittent use (up to 3 hours continuous use). Special care and consideration was given in the manufacturing of this product to provide maximum flexibility at all operating temperatures.
- Temperature rating: -49°C - 105°C
- Construction: ASTM B172 Rope stranded copper conductor, vinyl separator, insulated with oil and water resistant elastomer rubber hybrid compound.
- Sample print: TRYSTAR AWG 1/0 600V TRYSTAR.COM MADE IN USA FT ><
- Use: For connections for electrode holder and grounding clamp to arc welder, bus, inverter or transformer-style weld machines. Also suitable for certain 600V applications such as battery leads and jumper cables.
Documentation:
Cage-Style Transformer
- Size range: 30kVA – 500kVA, step up or step down, to/from a variety of voltages
- Input options: Cord grip, 16 series panel mounts, hardwire, and more
- Output options: Variety of receptacles, 16 series panel mounts, hardwire, and more
- Other features: Primary and secondary breakers, three phase or single phase, UL 50 Listed, UL 1640 Listed and/or C-ETL/ETL 1640 Listed, NEMA 3R or NEMA 4X, all aluminum construction or all stainless steel construction, heavy duty cage with casters, custom powder coat, custom UV-printed graphics, made in USA
Control Cable
- Description: Heavy, flexible multi-conductor control cables with 9 pin or 14 pin adaptors and extensions.
Shipyard Welding Cable
- Description: Shipyard welding cable is furnished with 30 ga. (Class K) flexible soft drawn electrolytic copper. A vinyl insulator separates the outer sheath, a -49°C to +105°C elastomer compound. Trystar cable is RoHS Compliant. It exhibits excellent oil and water resistance, resists abrasion and is flexible in cold weather. It is rated at 600 volts for intermittent use (up to 3 hours continuous use). Special care and consideration was given in the manufacturing of this product to provide maximum flexibility at all operating temperatures.
- Temperature rating: -49°C - 105°C
- Construction: ASTM B172 Rope stranded copper conductor, vinyl separator, insulated with oil and water resistant elastomer rubber hybrid compound.
- Sample print: TRYSTAR AWG 1/0 600V TRYSTAR.COM MADE IN USA FT ><
- Use: For connections for electrode holder and grounding clamp to arc welder, bus, inverter or transformer-style weld machines. Also suitable for certain 600V applications such as battery leads and jumper cables.
Documentation:
Ultraflex Welding Cable
- Description: Ultraflex welding cable is furnished with 30 ga. (Class K) flexible soft drawn electrolytic copper. A vinyl insulator separates the outer sheath, a -75°C to +105°C elastomer compound. Trystar cable is RoHS Compliant. It exhibits excellent oil and water resistance, resists abrasion and is flexible in cold weather. It is rated at 600 volts for intermittent use (up to 3 hours continuous use). Special care and consideration was given in the manufacturing of this product to provide maximum flexibility at all operating temperatures.
- Temperature rating: -75°C - 105°C
- Construction: ASTM B172 Rope stranded copper conductor, vinyl separator, insulated with oil and water resistant elastomer rubber hybrid compound.
- Sample print: TRYSTAR ULTRA FLEX AWG 1/0 600V (-75°C - +105°C) TRYSTAR.COM MADE IN USA FT ><
- Use: For connections for electrode holder and grounding clamp to arc welder, bus, inverter or transformer-style weld machines. Also suitable for certain 600V applications such as battery leads and jumper cables.
