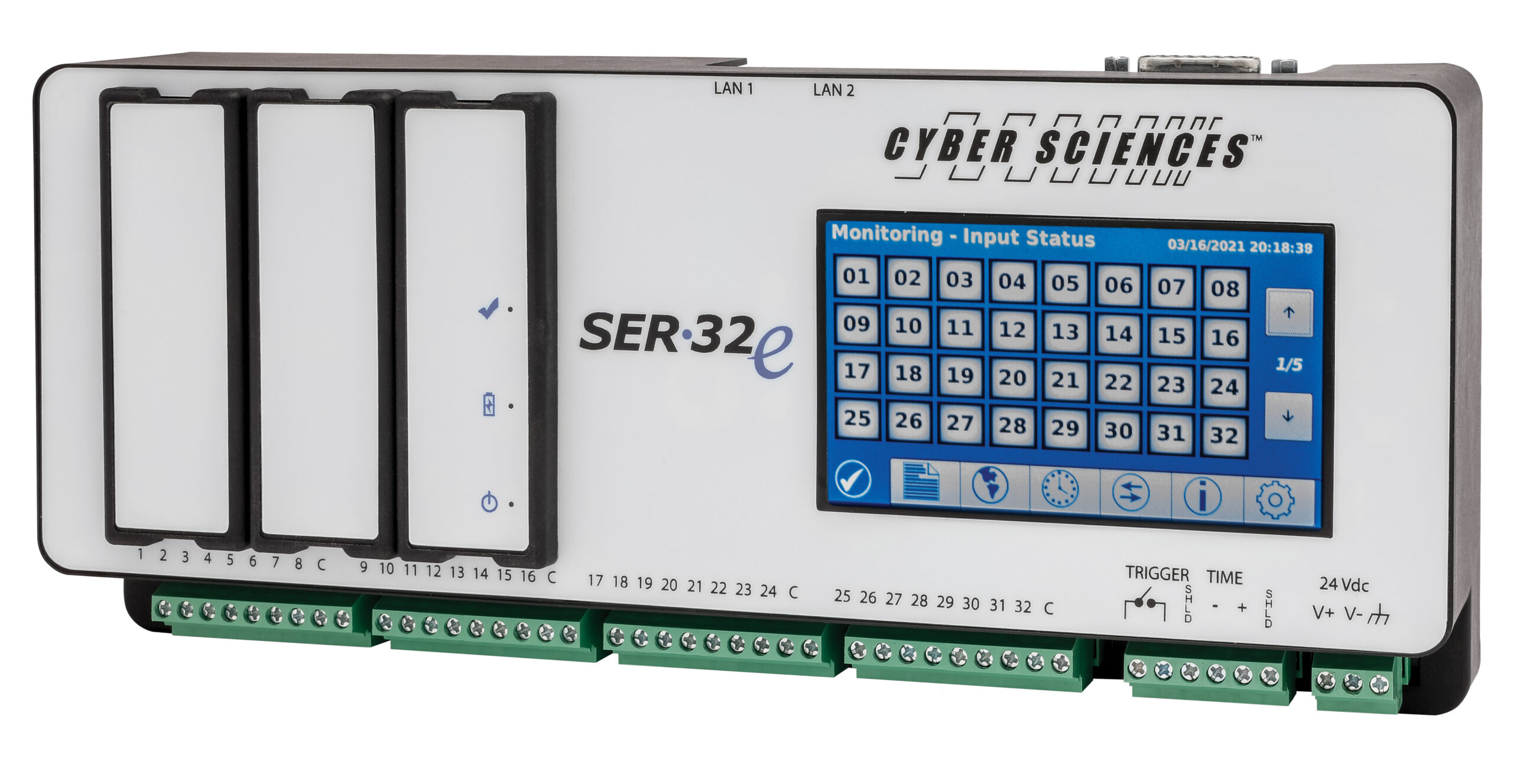

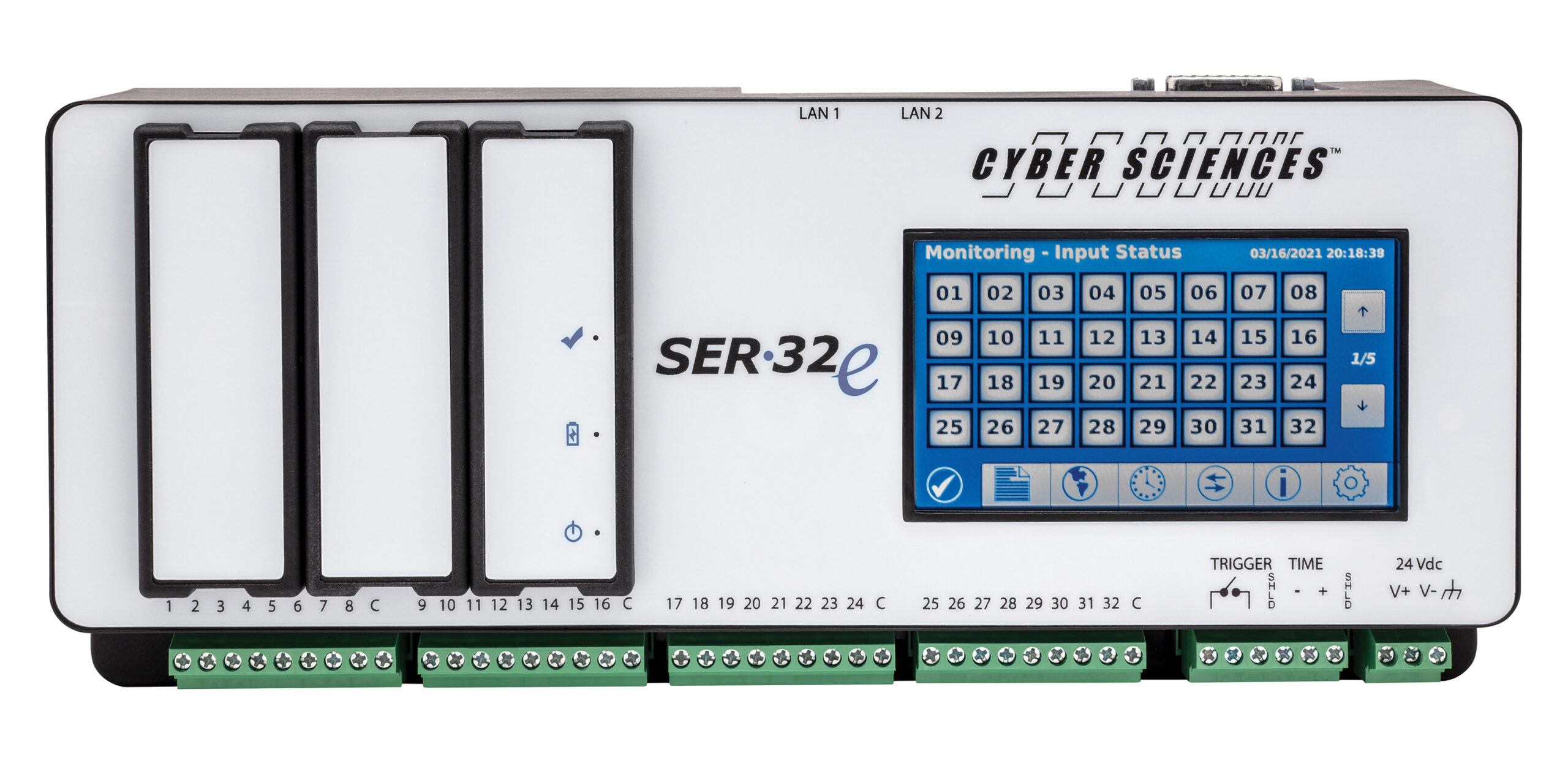

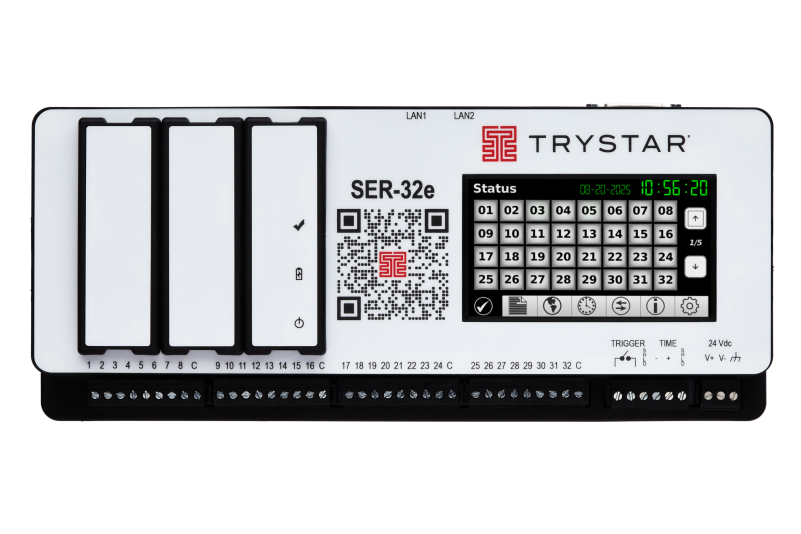

SER-32e
Sequence of Events Recorder
The ER-32e Sequence of Events Recorder delivers high-speed, millisecond-accurate event recording across 32 channels, enabling root-cause analysis and advanced diagnostics for critical power systems. With precise 1 ms time-stamping and support for multiple time synchronization protocols (PTP, IRIG-B, NTP, DCF77), it ensures system-wide accuracy. A large 4.3” color touchscreen simplifies setup, diagnostics, and input monitoring, while an embedded secure web server (HTTPS) eliminates the need for proprietary software. With expansion slots for added I/O, extended control power ride-through, and seamless integration into SCADA, power monitoring, and building management systems, the SER-32e enhances reliability, security, and operational insight.
Features
- Millisecond Precision – Monitors and records up to 48 channels with 1 ms resolution, enabling accurate root-cause analysis of critical events.
- Time Synchronization Flexibility – Supports multiple time protocols (PTP, NTP, IRIG-B, DCF77, Inter-SER), ensuring precise system-wide event correlation.
- User-Friendly Operation – Large 4.3” color touchscreen simplifies menu navigation, device setup, diagnostics, and real-time monitoring.
- Seamless Integration – Easily integrates into SCADA, Power Monitoring, and Building Management Systems with Modbus TCP and RESTful API.
- Built-In Cybersecurity – Embedded HTTPS web server with 256-bit encryption ensures secure configuration and data access.
- Resilient Performance – Extended control power ride-through guarantees critical events are captured even during power outages.

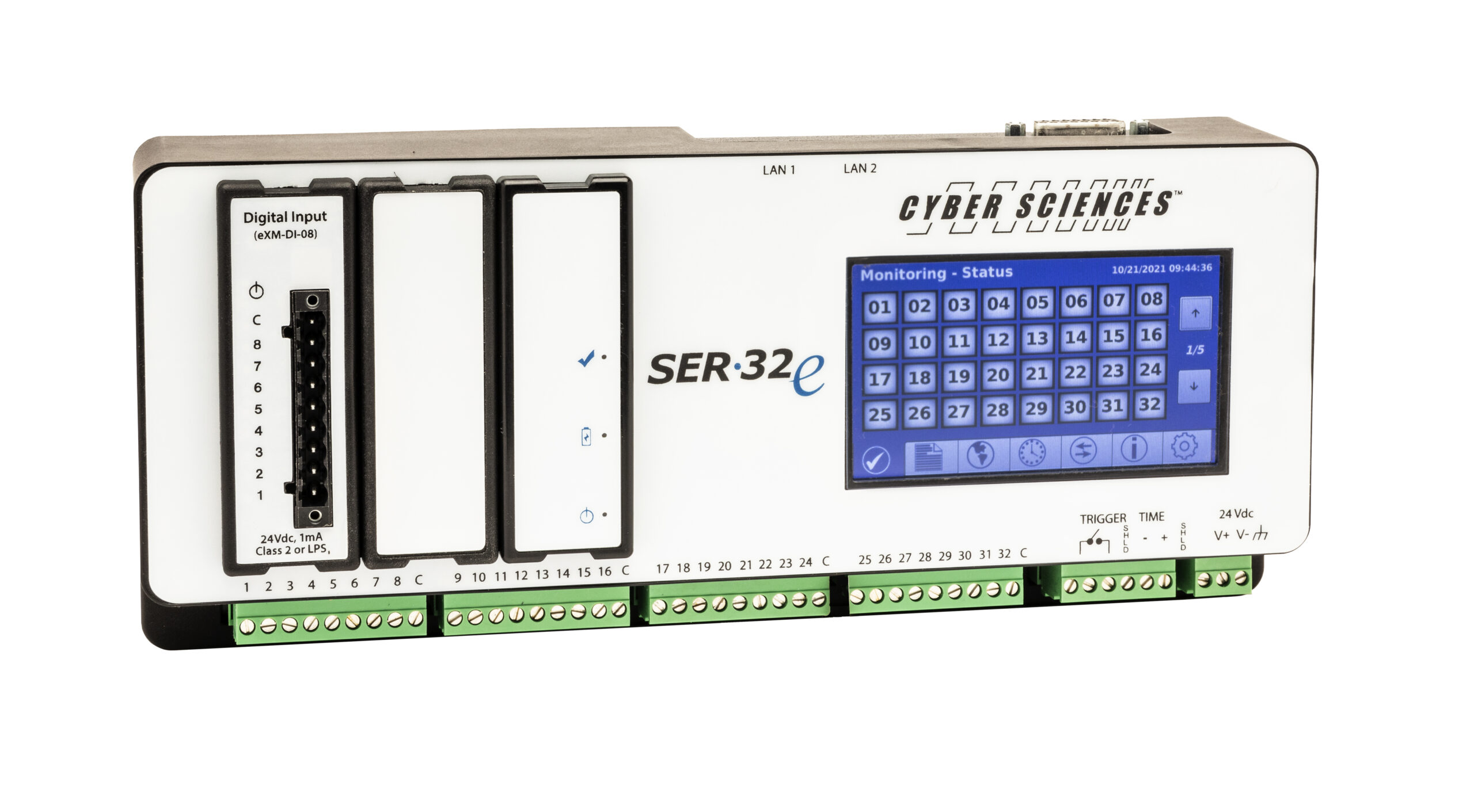

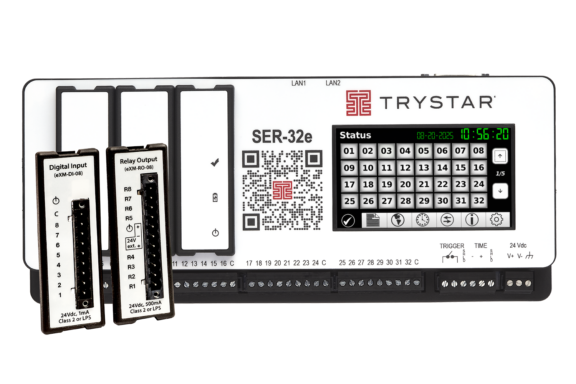

- Expandable Design – Two expansion slots add up to 16 extra I/O points, scaling capacity to evolving system needs.
- Advanced Diagnostics – High-speed trigger output to trigger waveforms captures via compatible power meters for deeper system insights.
Specifications
- Electrical – Digital Inputs:
Number of inputs: 32 (default), 48 (maximum)
Voltage, operating: 24 Vdc (-15% to +10%)
Must turn on/off voltage: 20 Vdc (on) / 9 Vdc (off)
Input impedance: 10K ohms resistive, 1 mA - High-Speed Trigger Output:
Relay type: Form A relay
Maximum current: 100 mA at 24 Vdc nominal
Contact closure: Momentary, duration of 100 ms - Control Power:
Voltage, operating: 24 Vdc (±10%)
Burden, steady state (max.): 7 VA
Burden, momentary (max.) inrush current: 0.8 A for 5–8 ms
Ride-thru: > 10 seconds - Time Synchronization – Input:
Protocols supported:
• PTP IEEE 1588-2019 (v2.1), E2E Default Profile, per Annex I
• IRIG-B (via optional EZC-IRIG-B connector), Unmodulated IRIG-B (5V DCLS) types B004, B007 (with year), IEEE 1344, C37.118
• DCF77 (via optional EZC-DCF77 connector) DCF77 (24 Vdc)
• SER inter-device time sync (legacy applications)
• RS-485 (IRIG-B or DCF77 time code)
• NTP (SNTP) client, configurable primary/secondary servers and update interval - Time Synchronization – Output:
Protocols supported:
• PTP IEEE 1588-2019 (v2.1), E2E Default Profile, per Annex I
• IRIG-B (via optional PLXe-5V or PLX-5V connector), Unmodulated IRIG-B (5V DCLS) type B007, IEEE-1344, C37.118
• IRIG-B (via optional PLX-24V connector), IRIG-B (24V DCLS) type B007, IEEE-1344, C37.118
• DCF77 (via PLX-24V connector)
1 pulse per 10 seconds (via PLX-24V connector)
• RS-485 ASCII (ASCII + Quality) or inter-SER time sync (legacy) - Clock Accuracy: < 100 µs (with time source = PTP, IRIG-B or DCF77)
- Holdover: 5 min. (remains within 100 µs after loss of sync for up to 5 min.)
- Communications:
Ethernet interface: 10/100BaseTx Shielded Twisted Pair,
Supported protocols: Modbus TCP, Secure ModbusTCP, HTTPS, RESTful API, SNMP (V2c, V3), PTP, NTP
Serial port (time-sync IN/OUT): RS-485 (2-wire plus shield)
Web server: HTML5
Simultaneous TCP connections: 44 (32 max allocated to Modbus TCP sockets, port 502/802) - Mechanical:
Mounting: Standard DIN rail (EN 50022, 35 mm x 15 mm)
Wire sizes supported: #24 to #12 AWG (#26 to #14 AWG for 3-position EZC connectors)
Dimensions (W x H x D): 11.5 x 5.0 x 2.62 in. (292 x 127 x 66.5 mm)
In carton: 12.5 x 6.5 x 4.5 in. (318 x 165 x 114 mm)
Weight: 2.4 lbs (1.1 kg) / 3.5 lbs (1.6 kg) packaged - Environmental:
Temperature: -25º to +70º C (Operating), -40º to +85º C (Storage)
Humidity rating: 5% to 95% relative humidity (non-condensing) at 40º C
Altitude rating: 0 to 3000 meters (10,000 feet) - Regulatory:
UL / EN 61010-1, UL 61010-2-201)
CAN/CSA-C22.2 (61010-1-12, 61010-2-201)
CE mark (EN 61010-1:2010, EN 61010-2-201:2017)
Emissions / Immunity EN 61326-1 (IEC 61326-1 : 2012)
Radiated emissions CISPR 11, Class A, Group 1 (EN 55011) / FCC Part 15B, Class A - Sustainability: RoHS 3 (EU Directive 2015/863), REACH (EC 1907/2006)
- Country of Origin: USA
Documentation
Product Brochures
Instruction / Owners Manuals
-
Guide Specification – SER-32e (word doc)
-
Instruction Bulletin for Digital Input Module eXM-DI-08
-
Instruction Bulletin for Relay Output Module eXM-RO-08
-
Instruction Bulletin: PTP Legacy Interface (PLXe-5V) for SER-32e
-
SER-32e Guide Specification
-
SER-32e Installation Manual
-
SER-32e Option Module Quick Start Guide (tri-fold)
-
SER-32e Quick Start Guide
-
Users Guide for SER-32e
Case Studies
Data Sheets
Handouts
Application Notes
-
Tech Note: Measuring Breaker Opening Times with CyTime SER-3200/2408
-
Tech Note: Overview of 1per10 Time Protocol
-
Tech Note: Overview of ASCII/RS-485 Time Protocol
-
Tech Note: Overview of IRIG-B Time Code Standard for Sequence of Events Recorder
-
Tech Note: Replacing ProTime SER with CyTime SER-3200
-
Tech Note: SER Device Selection Guide
-
Tech Note: SER Export Events to CSV
-
Tech Note: SER System Design Guide
Support
Services
Technical Support, Start Up Support, Preventative Maintenance, Field Service, In-house Repair, Spare Parts
