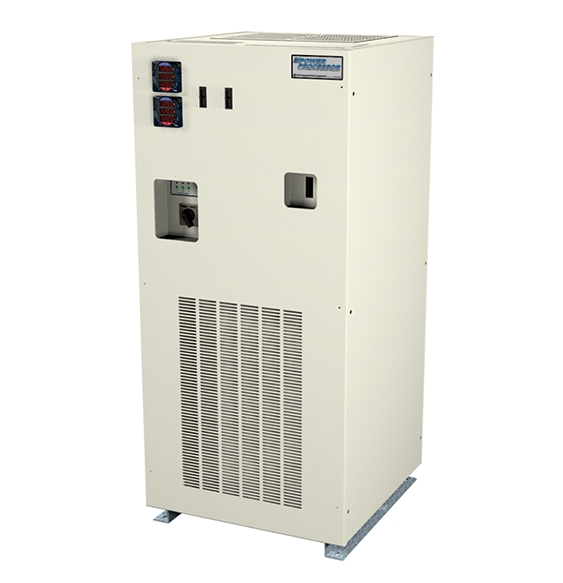

Series 700F Front-Access Power Processor (10 kVA - 150 kVA) Three Phase

The Series 700F is a front access, tap switching, power conditioning voltage regulator which features a small footprint, high efficiency design, triple-shielded isolation transformer, tight output voltage regulation to ± 3%, and optional power quality monitoring. Digital processing provides fast, accurate regulation within one cycle, without over- or under-shoot. With a unique front access cabinet design, left, right, and rear access are not required for system installation, operation or service.

The Series 700F has been shake-table tested and each of our models are offered with an optional seismic rating. Seismic-rated Series 700F models are available with an input nominal voltage of 208VAC, 240VAC, or 480VAC and are provided on floor-mounting channels. These models meet seismic standards which satisfy the California Office of Statewide Health Planning (OSHPD) requirements, as well as CBC 2013 and IBC 2015 standards! The verification testing required is recognized and accepted by most of the U.S., as well as other countries, and not exclusive to the hospital market.

Learn more about our OSHPD Seismic Preapproval and test results!

Applications

  • Pharmaceuticals/Labs
  • Government/Commercial Buildings
  • Broadcast Communications
  • Telecommunications
  • Concert Halls/Theaters
  • Wastewater Treatment Plants
  • Refineries/Petrochemical
  • Aerospace
  • Printing Presses
  • Industrial Lasers
  • Pulp/Paper Mills
  • Food Processing Plants
  • UPS Bypass & Power Distribution

Product Specifications

Features and Benefits

  • Front access only! All installation, operation, maintenance, and testing can occur from the front of the unit — no side or rear access required
  • 7-tap, microprocessor-controlled for tight voltage regulation, accuracy, and stability.
  • Precisely maintains correct voltage to ± 3% within 1 cycle, and maintains regulation during extended brownouts
  • Extended input regulation range options including +10%, -40%; +15%, -25%; and +20%, -30%
  • Low output impedance transformer minimizes voltage distortion and sags commonly associated with high surge currents
  • Triple-shielded isolation transformer provides a noise-free ground, attenuates voltage spikes and transients, and re-establishes the N-G bond
  • Optional internal manual bypass option maintains system isolation, voltage transformation, and power conditioning
  • Superior compatibility with dynamic loads
  • Increased surge capability, without the need for automatic bypassing, provides full-time power conditioning
  • High-efficiency design results in lower operating cost
  • Up to two (2) output circuit breakers can be selected on models 10kVA – 50kVA, and up to four (4) on models 75kVA – 150kVA. Consult factory for available breaker ratings
  • Optional input and/or output meter with power quality monitoring and remote network communications

Performance Specs

  • Input Operating Voltage Range: +10%, – 20% from nominal (Extended regulation range options available.)
  • Input Frequency: 60 Hz, ± 3%
  • Input Power Factor: > .99 PF with resistive load
  • Reflected Harmonics: Triplen harmonics are not reflected to the utility under non-linear loads
  • Output Line Voltage Regulation: ± 3% from nominal
  • Response Time: < 1/2 cycle
  • Correction Time: 1 cycle
  • Load Regulation: 2.5% typical, no load to full load
  • Overload Rating: 200% for 10 seconds; 1000% for 1 cycle
  • Common Mode Noise Attenuation: 146dB
  • Transverse Mode: 3 dB down at 1kHz; 40 dB down per decade to below 50 dB with a resistive load
  • Transient Voltage Suppression: Meets ANSI C62.41 Category B-3
  • Efficiency: 96% – 97% typical, model and load dependent
  • UL 1012 Listed, C-UL Listed to CSA C22.2, No. 107.1-01

Three Phase Sizes

  • 10kVA, 15kVA, 25kVA, 30kVA, 50kVA, 75kVA, 100kVA, 125kVA, 150kVA

Frequently Asked Questions

What is a tap switching power conditioner?

Tap switching describes a voltage regulating system that uses pre-selected transformer taps to compensate for varying line voltages. A microprocessor control selects the correct tap and makes a connection through high-powered electronic switching devices. This technology is fast, accurate, and very efficient. Power conditioner refers to the system’s ability to provide clean power, free of voltage spikes, transients, and electrical noise.

Are all tap switching power conditioners the same?

No. Some systems use six voltage taps per phase, while the Series 700F uses seven voltage taps per phase. This extra tap has a big benefit, resulting in tighter voltage regulation and a more stable power source. The Series 700F’s proprietary switching algorithms ensure that incoming voltage distortion will not affect regulation performance, and that nuisance switching and voltage over-shoot often seen with other manufacturers’ designs are eliminated.

Where should the Series 700F tap switching technology be used?

Tap switching technology should be used for applications and with equipment that require a regulated power source to function properly and perform at an optimum level. For most electronically controlled systems, voltage regulation (correction) must occur within a few cycles. The Series 700F provides voltage correction in one cycle. Other voltage regulating technologies can take numerous cycles or seconds to adjust. This is not acceptable for most electronically controlled systems.

What power quality advantages does the Series 700F offer?

The Series 700F has three major advantages. When the input voltage rises dangerously above nominal, the microprocessor immediately calculates the correction necessary, and switches to the appropriate voltage compensating tap within one cycle. To provide power conditioning, a low impedance shielded isolation transformer is used to minimize voltage distortion and sags commonly associated with high surge currents. Loads that create momentary surge currents do not affect other equipment connected to the system. The isolation transformer is constructed using three electrostatic shields that provide a high level of common mode noise attenuation, eliminating ground noise and transients. Size, weight, audible noise, and operational efficiency are all optimized.

How much overload can the Series 700F handle?

The Series 700F is very robust and conservatively designed, handling 1,000% of its continuous rating for one cycle and 200% for 10 seconds!

How does the Series 700F protect the load from a utility loss of phase condition?

A utility loss of phase condition can prove detrimental to sensitive three phase loads, including motor loads. The Series 700F protects downstream equipment by electronically shutting off if the power source feeding it loses one or more phases. Once the phases return, the Series 700F will turn all three phases back on simultaneously. This protects the load and ensures that the line currents will not exceed critical values.

Is the Series 700F as reliable as other technologies?

Yes, and in some cases … much more. Our tap switching technology has a long history of reliability, exceeding 200,000 hours of field-compiled data. Conservatively designed, rated components are never stressed. In the event that input or output conditions exceed the unit’s ratings, protective devices are strategically placed to minimize or eliminate component failure.

Related Products

Series 700A Power Processor (5 kVA – 25 kVA ) Single Phase

The Series 700A Power Processor is an electronic, microprocessor-controlled tap switching voltage regulator / power conditioner, which consists of an all-copper, multiple-tapped, triple-shielded isolation transformer. The transformer’s three electrostatic shields provide excellent electrical noise attenuation, and its low output impedance results in outstanding load regulation. On each of the transformer’s…

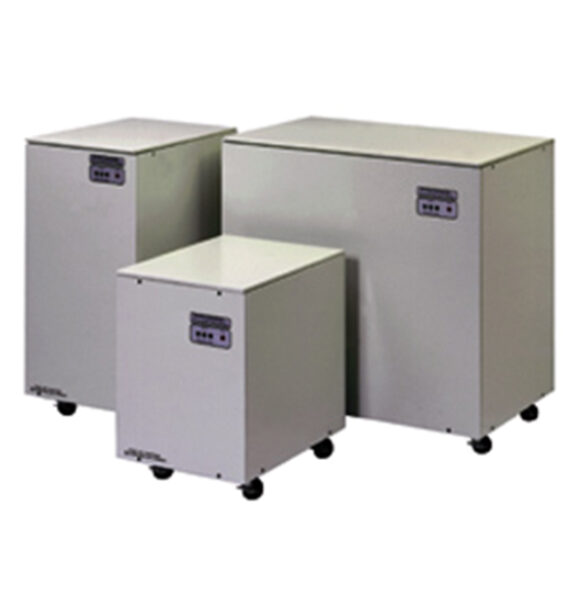

Series 700A Power Processor (10 kVA – 1 MVA ) Three Phase

The Series 700A Power Processor is an electronic, microprocessor-controlled tap switching voltage regulator/power conditioner, which consists of an all-copper, multiple-tapped, triple-shielded isolation transformer. The transformer’s three electrostatic shields provide excellent electrical noise attenuation, and its low output impedance results in outstanding load regulation. On each of the transformer’s seven taps…

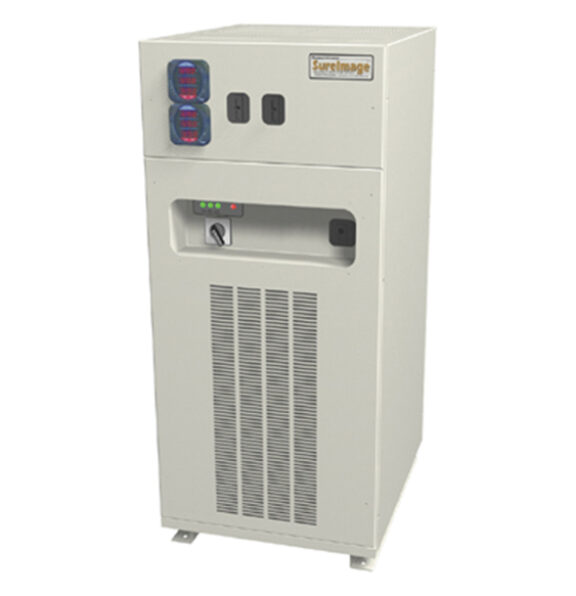

SureImage Power Processor Model 700F/M (60K(i) – 260K(i)) Medical-Grade
