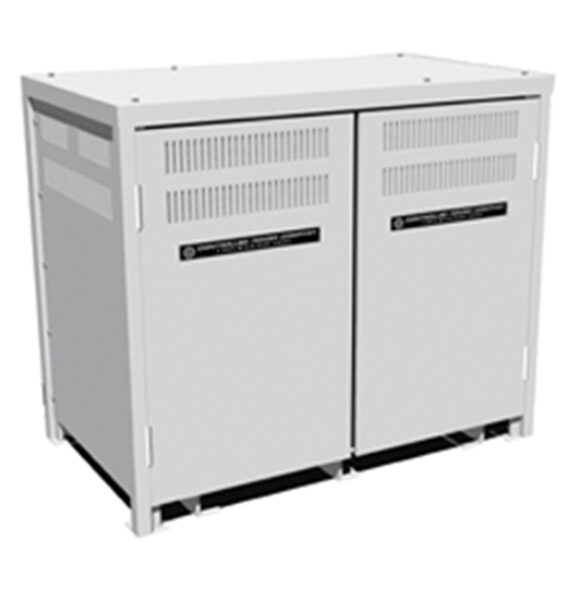

Series 900/200 Power Commander "Plus" (15 kVA - 450 kVA) Three Phase
The Series 900/200 Power Commander “Plus” is a magnetic voltage regulator that provides high precision voltage regulation and high fault clearing capability with the added benefits of isolation and voltage conversion. With the Power Commander’s tight voltage regulation and load regulation, it is the best choice for testing as well as high precision voltage applications.
Applications
- Test Laboratories/Failure Testing/Burn In
- Premarket Product Testing
- Industrial/Commercial/Institutional Facilities
- Power Generation Authorities
- Instrumentation and Control Systems
- Semiconductor Manufacturing
- Regulated Bypass for Uninterruptible Power Systems
- Highly Accurate Voltage Regulation Needs
Product Specifications
Features and Benefits
- High precision voltage regulation
- High fault clearing capability
- Low harmonic distortion
- Adjustable output voltage
- Tight load regulation
- 20 year design life
- Rugged design
- No moving parts (except certain models have fans)
- Low maintenance
- Computer grade isolation
- Common mode noise attenuation
- Voltage conversion
- Remote sensing to compensate for series voltage drops to the load
Performance Specs
- Voltage Regulation: ± 1% or better for input voltage fluctuations of +10% to -20% of nominal, and from no load to full load
- Frequency Range: 57 to 63 Hz for 60 Hertz models, or 48 to 52 Hz for 50 Hertz models
- Output Voltage Adjustment Range: Adjustable to ± 10% with internally located potentiometer
- Correction Time: 5 to 9 cycles under worst case conditions
- Harmonic Content: Less than 5% THD added under linear load
- Efficiency: 89% to 92%, KVA size dependent
- Overload Capability: 500% for 10 seconds, 1000% for one cycle
Three Phase Sizes
- 15kVA, 22.5kVA, 30kVA, 45kVA, 75kVA, 112.5kVA, 150kVA, 225kVA, 300kVA, 450kVA
Frequently Asked Questions
How does the Power Commander “Plus” regulate voltage?
The Power Commander “Plus” uses the natural properties of magnetics to regulate voltage. The Power Commander changes the magnetic properties of a transformer through a control loop, thus changing the voltage either up or down.
What differentiates the Power Commander “Plus” from other regulators?
The Power Commander “Plus” can regulate voltage to within 1%, even with input voltage fluctuations of +10% to -20% of nominal, and from no load to full load. Most voltage regulators available today simply are not this precise. In addition, the output voltage may be sensed and regulated at the load, automatically compensating for line and wire losses due to long distance cable runs to the load!
What differentiates the Series 900/200 Power Commander “Plus” from Trystar’s Series 900 Power Commander?
In addition to tight voltage regulation, the Series 900/200 Power Commander “Plus” steps the nominal voltage up or down to the desired level, and it also provides isolation as well as transient and noise attenuation.

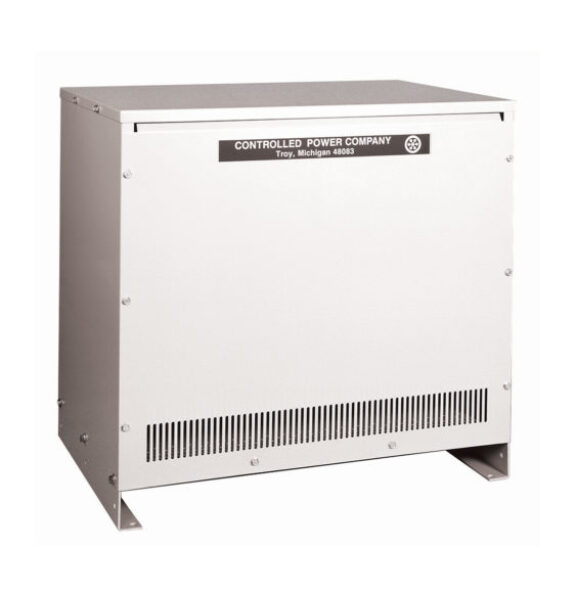

Series 900/200 Power Commander “Plus” (15 kVA – 150 kVA) Single Phase
