Portable Automatic Transfer Switches

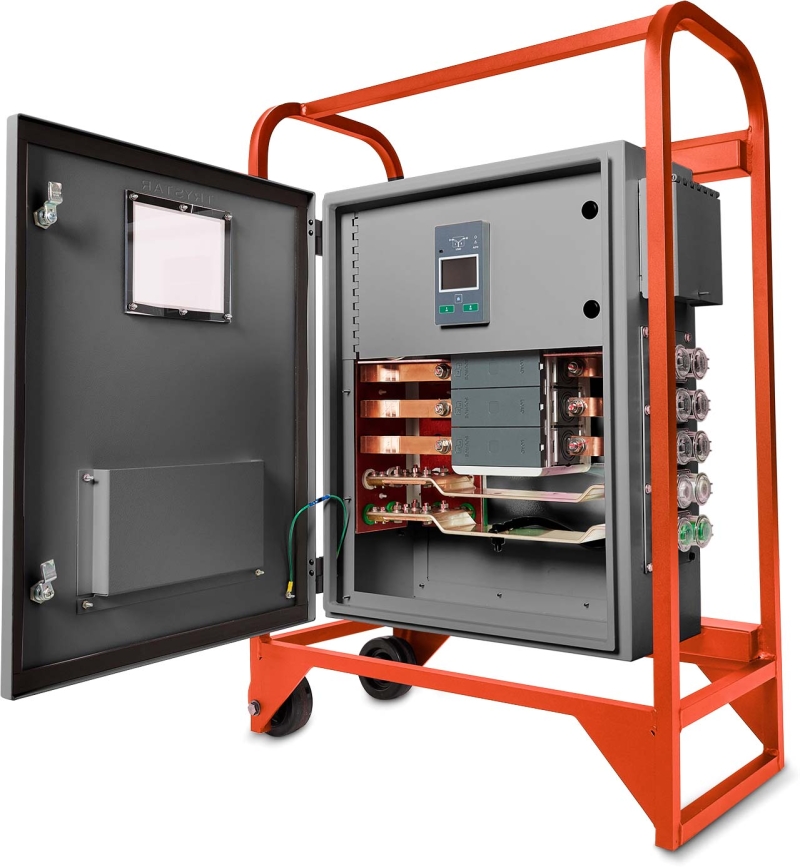

The Trystar Portable ATS is a compact, wheeled, dual-voltage automatic transfer switch designed for temporary and emergency backup power. Built for rental and industrial use, it delivers reliable performance during ATS failures, plant shutdowns, or disaster response. With amperage ranges from 200A–1200A and ratings up to 480V, the unit is UL 1008 listed and housed in a rugged NEMA 3R enclosure for durability. Easy-to-use touchscreen controls, industry-standard camlock connections, and customizable branding make it a flexible, portable solution that ensures safe, seamless power transfer when permanent ATS units are unavailable.
Features
- Rapid Deployment for Continuity – Provides immediate ATS functionality when permanent units fail or during planned outages, eliminating downtime delays of 12–16 weeks.
- Portable & Rugged Design – Compact, wheeled enclosure with a tilt-and-roll cage ensures easy mobility and durability for industrial or rental applications.
- Dual Voltage Flexibility – Supports 200V–480V operation with automatic configuration, making it adaptable for diverse job sites and applications.
- Safe & Secure Operation – Equipped with protective flip lids on all panel mounts, padlockable covers, and full internal bus bar—no external cabling required.
- User-Friendly Controls – LCD touchscreen controller with dual voltage selector streamlines setup and enhances operational efficiency.
- Customizable Branding & Finishes – Available in multiple powder coat colors with UV-printed customer logos for professional fleet integration.
- Reliable Standards Compliance – Listed to UL 1008 and rated NEMA 3R, ensuring compliance with safety codes and resilience in outdoor environments.
- Ideal for Emergency Response – Supports critical operations in healthcare, disaster recovery, and temporary facilities like hospitals and testing centers.
Specifications
- Product Description: Portable ATS – Dual Voltage ATS
- Amperage Range: 200A – 1200A
- Voltage Rating: 200V – 480V
- Standards: UL 1008 Listed
- Enclosure: NEMA 3R, Aluminum Non-Corrosive
- Input Connections:
Source 1: Male 16 Series Panel Mounts (BK, BK, BK, WT, GN)
Source 2: Male 16 Series Panel Mounts (BK, BK, BK, WT, GN) - Output Connections: Female 16 Series Panel Mounts (BK, BK, BK, WT, GN)
- Transfer Switch: Open Transition with LCD Touchscreen Controller
- Standard Features:
Touchscreen Dual Voltage Selector
Initial Startup Automatic Configuration
Tilt & Roll Cage
Padlock Cover over Input Panel Mounts
Clear Flip Lids on Panel Mounts
Full Internal Bus Bar – No Cabling
Custom Powder coat Colors & UV Logo Printing
Auto Start Connections on Source 2
