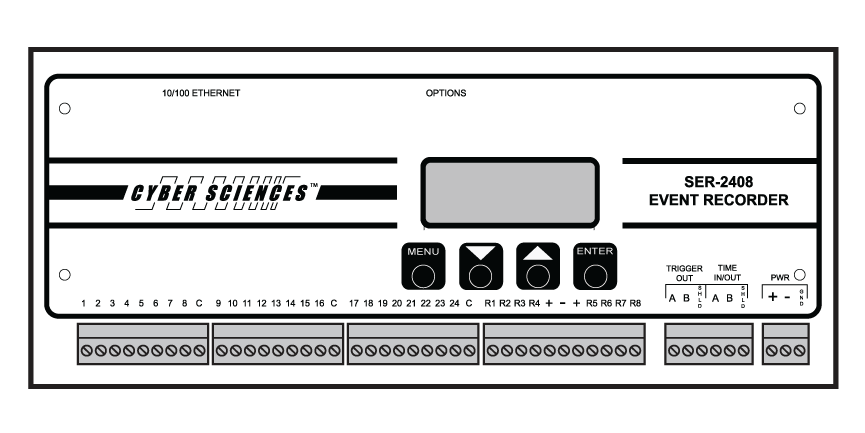

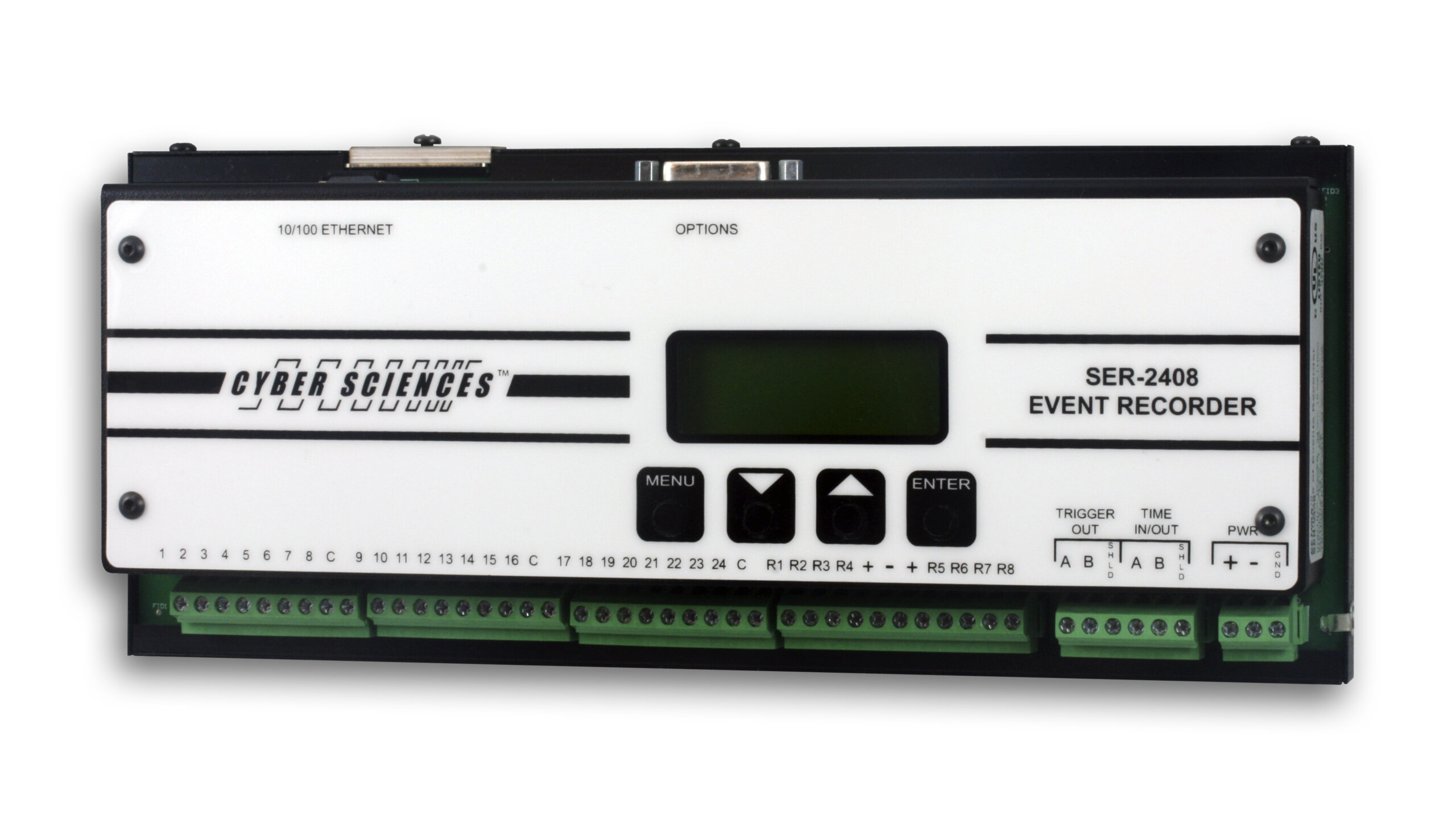

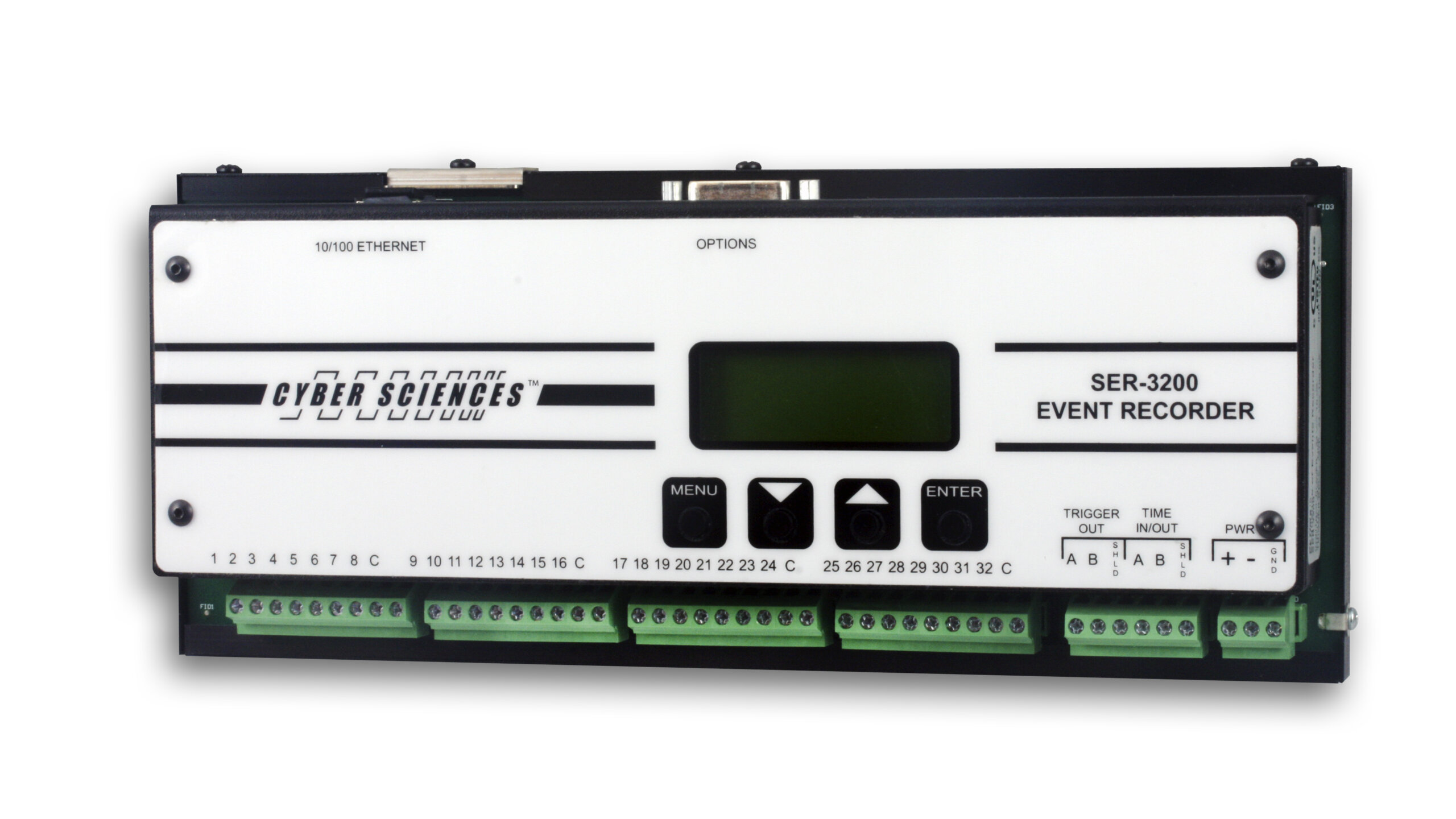

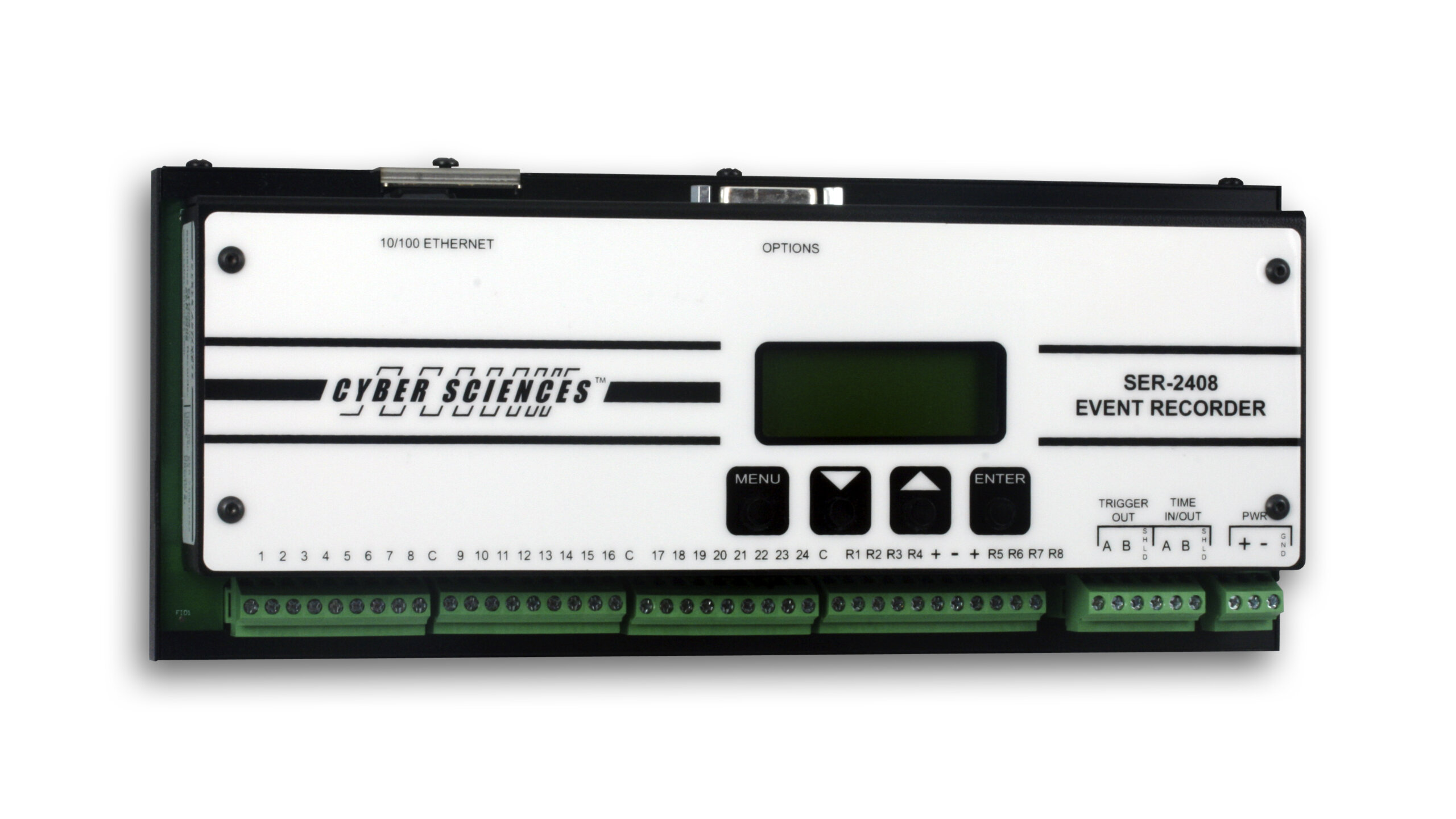

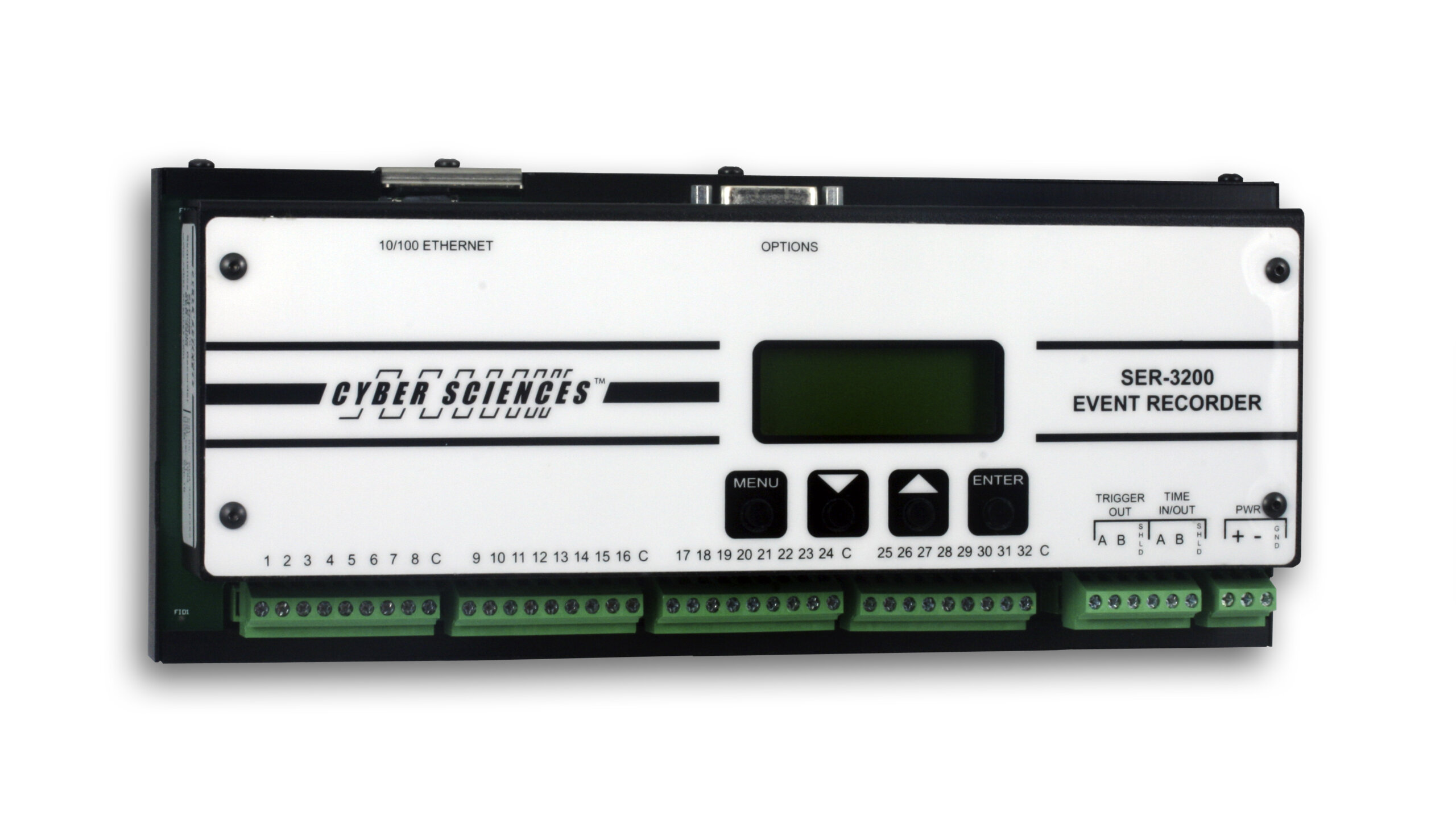

SER-3200/SER-2408

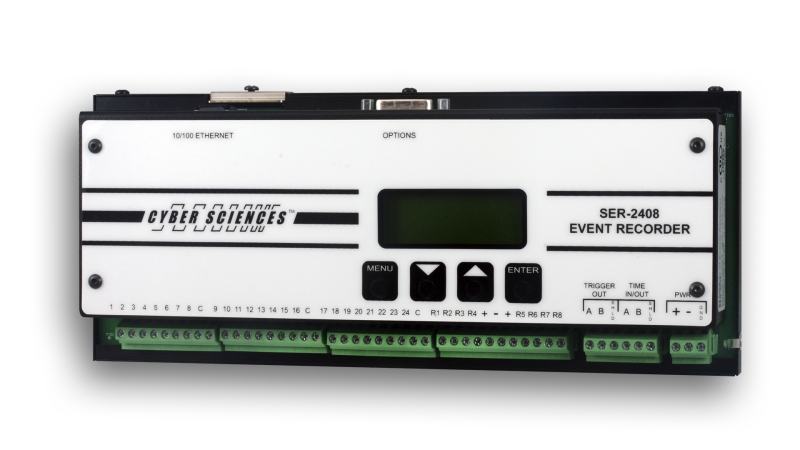

Sequence of Events Recorder

The Sequence of Events Recorder (SER-3200 / SER-2408) provides precise, 1 ms event time-stamping across up to 32 channels, enabling accurate root-cause analysis and system diagnostics. With versatile time synchronization—PTP, IRIG-B, DCF77, NTP, and inter-device RS-485—the SER ensures accurate coordination across critical systems. Integrated Ethernet with Modbus TCP, RESTful API, embedded  web server, and FTP access allow seamless integration with SCADA and power monitoring platforms. Built for reliability with non-volatile memory and solid-state relay outputs, the SER is ideal for utilities, data centers, and industrial operations requiring accurate and compliant event logging.

previous arrow
next arrow

Features

  • High-Resolution Event Logging – Records events on up to 32 channels with 1 ms accuracy, ensuring precise sequence capture for diagnostics.
  • Reliable Data Storage – Non-volatile memory with SDHC card support up to 32 GB preserves event history even during outages.
  • Versatile Time Synchronization – Supports multiple time sources including PTP, IRIG-B, DCF77, NTP, and inter-device RS-485 for system-wide accuracy.
  • Time Distribution Outputs – Provides IRIG-B, DCF77, ASCII, and PTP outputs to synchronize downstream devices.
  • Flexible Integration – Ethernet connectivity with Modbus TCP,  web server, RESTful API support, and FTP ensures seamless SCADA and monitoring system integration.
  • Control & Trigger Functions – Solid-state relay outputs and high-speed trigger output enable system control and waveform capture with compatible power meters.
  • Durable & Industrial-Grade – Wide operating temperature range (-25ºC to +70ºC), DIN rail mounting, and rugged solid-state design ensure reliability in demanding environments.
  • Certified & Compliant – UL-61010, UL-508, CSA, CE, RCM, FCC Class A, and RoHS compliance  ensure safety, quality, and environmental responsibility.

Specifications

  • Electrical – Digital Inputs:
    Number of inputs: 32 (SER-3200) or 24 (SER-2408)
    Voltage, operating: 24 Vdc (-15% to +10%)
    Must turn on/off voltage: 20 Vdc (on) / 9 Vdc (off)
    Input impedance: 10K ohms resistive, 1 mA current draw (max.)
  • Relay Outputs (SER-2408):
    Number and type of outputs: 8 Form A, solid-state relays (two groups of four)
    Voltage operating range: 16 to 30 Vdc (24 Vdc nominal)
    Current capacity: 2.0 A per relay output (8.0 A per group, 16 A total)
  • High-Speed Trigger Output:
    Relay type: Form A, solid-state relay
    Maximum current: 100 mA at 24 Vdc nominal
    Contact closure characteristics: Momentary contact closure, duration of 100 ms
  • Control Power:
    Voltage, operating: 24 Vdc (±10%)
     Burden (max.): Steady state: 10 VA (10 watts)
    Inrush current: 0.8 A for 5–8 ms
  • Time Synchronization – Input:
    Protocols Supported:
    • PTP slave (license key) IEEE 1588-2008 (v2), E2E Default Profile, per Annex J
    • IRIG-B (via optional EZC-IRIG-B connector),  5V DCLS types B004, B007
    • DCF77 (via optional EZC-DCF77 connector), 24 Vdc
    • RS-485 ASCII (ASCII + Quality) or Inter-device SER (legacy)
    • NTP (SNTP) client with configurable primary/secondary servers and update interval
  • Time Synchronization – Output:
    Protocols Supported:
    • PTP (license key) IEEE 1588-2008 (v2), E2E Default Profile, per Annex J
    • IRIG-B (via optional PLX-5V connector) unmodulated IRIG-B 5V DCLS type B007)
    • IRIG-B (via optional PLX-24V connector) 24V DCLS type B007, compatible with STR-IDM)
    • DCF77 or 1per10 (via PLX-24V connector) 24 Vdc
    1 pulse per 10 seconds (via PLX-24 Vdc)
    • RS-485 ASCII (ASCII + Quality) or SER inter-device time (legacy)
  • Clock Accuracy: < 100 µs (with time source PTP, IRIG-B or DCF77)
  • Holdover: After sync for at least 2.5 min., remains within 100 µs for up to 5 min. after loss of sync
  • Communications:
    Ethernet Interface  10/100BaseTx (unshielded twisted pair)
    Protocols: Modbus TCP (port 502), 32 simultaneous TCP connections max.
    Web server: W3C-compliant (TCP ports 80)FTP file server (port 21), max. 5 simultaneous sessions
  • Memory: SDHC flash memory card (user-accessible) 16 GB standard (32 GB option)
  • Mechanical:

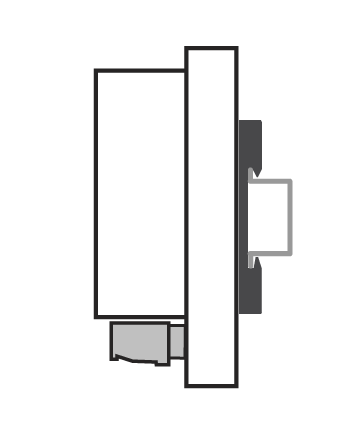

    Mounting: Standard DIN rail (EN 50022, 35 mm x 15 mm)
    Wire sizes supported: #24 to #12 AWG (#26 to #14 for EZC 3-position connector)
    Dimensions (W x H x D): 11.25 x 4.75 x 3.13 in. (286 x 121 x 79 mm)
    In carton: 12.50 x 6.50 x 4.50 in. (318 x 165 x 114 mm)
    Weight: 3.0 lbs (1.4 kg); in carton: 3.5 lbs (1.6 kg)
  • Environmental: Temperature: -25º to +70º C (Operating) / -40º to +85º C (Storage)Humidity rating: 5% to 95% RH (non-condensing) at 40º C
  • Regulatory Compliance:
    UL Listing: UL-61010, UL-508, cUL, CSA C22.2Global standards: CE Mark, RCM Mark, EN standards
    Radiated Emissions: FCC Class A / EN 55022:2010 (CISPR 22:2008) Class A
  • Sustainability: RoHS-compliant, lead-free
  • Country of Origin: USA
