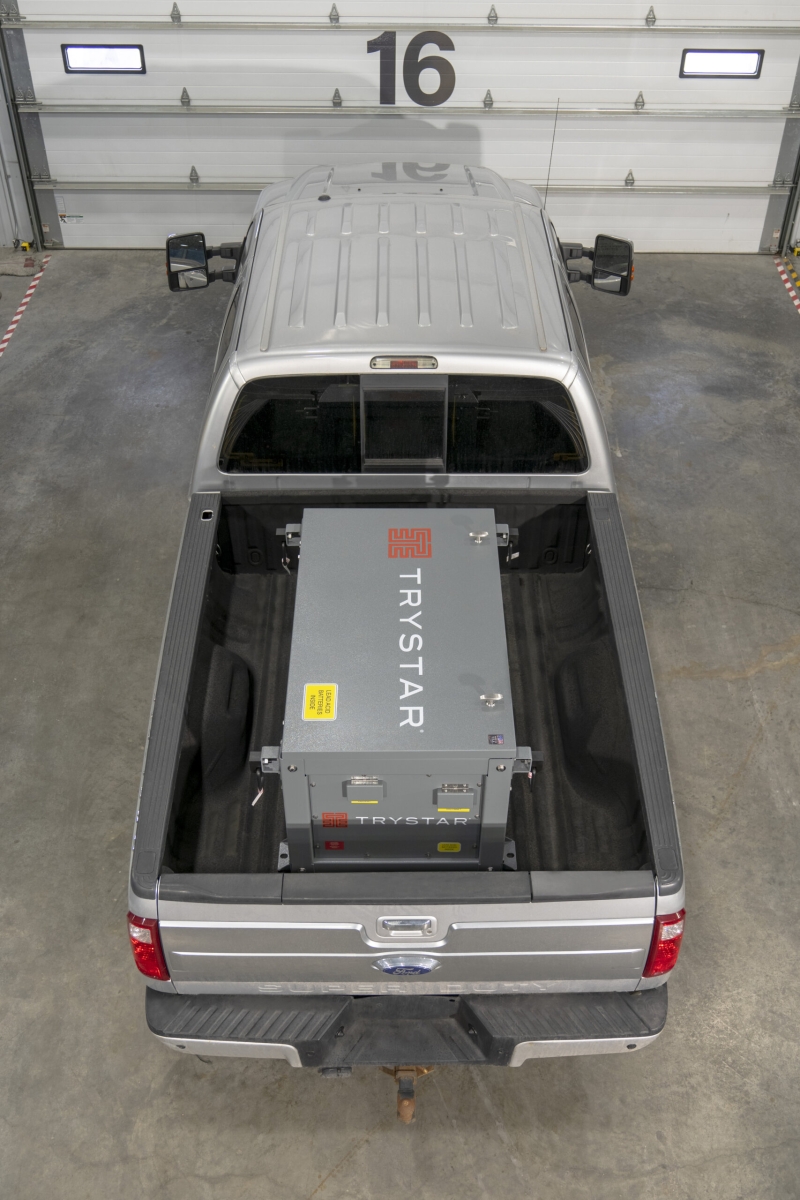

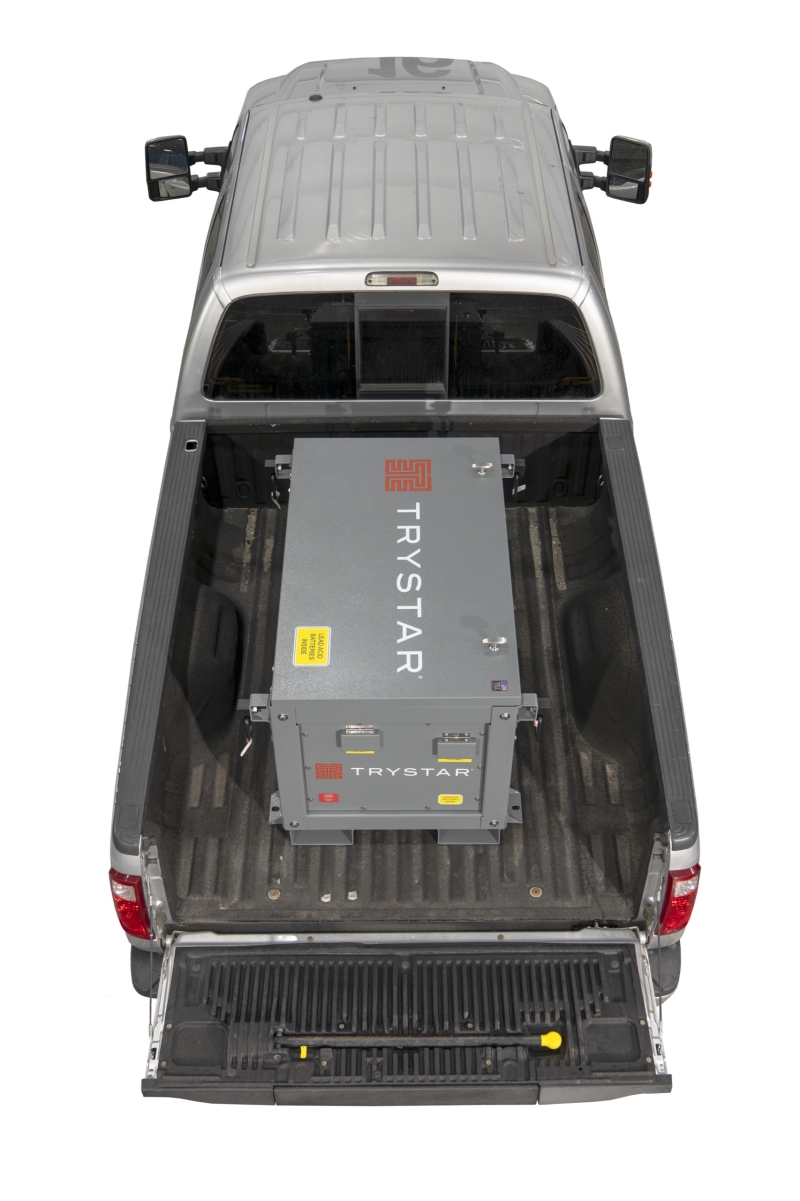

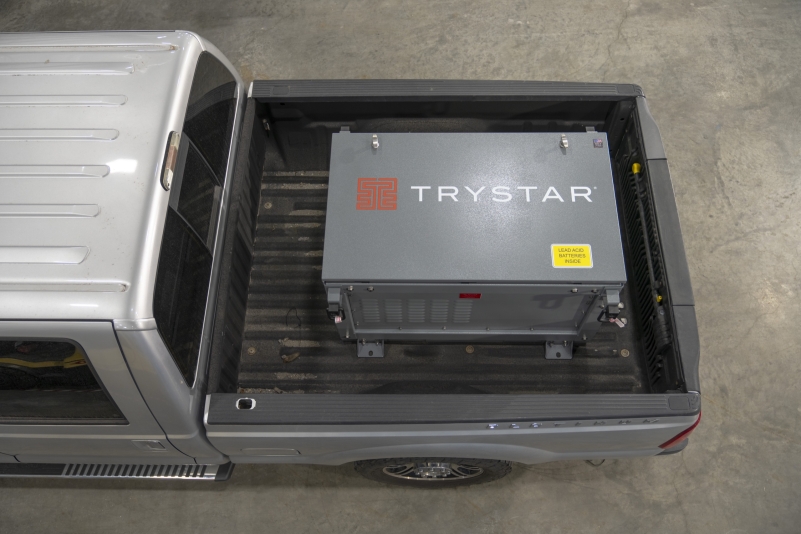

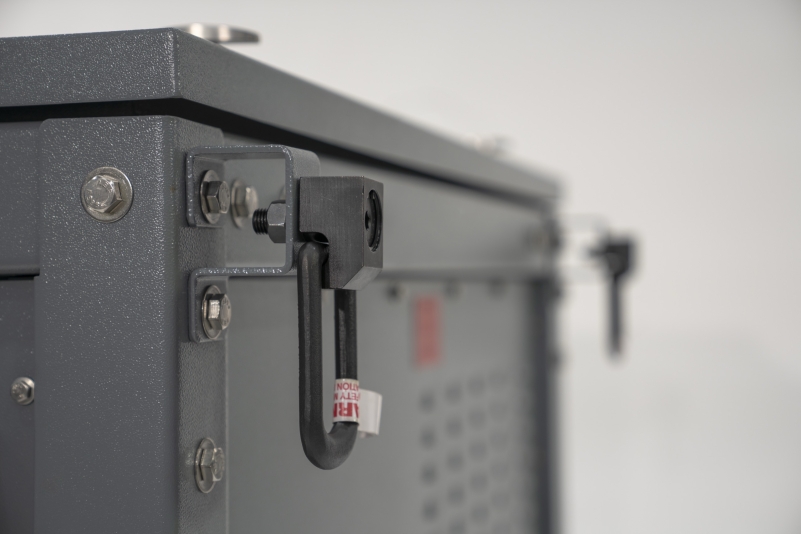

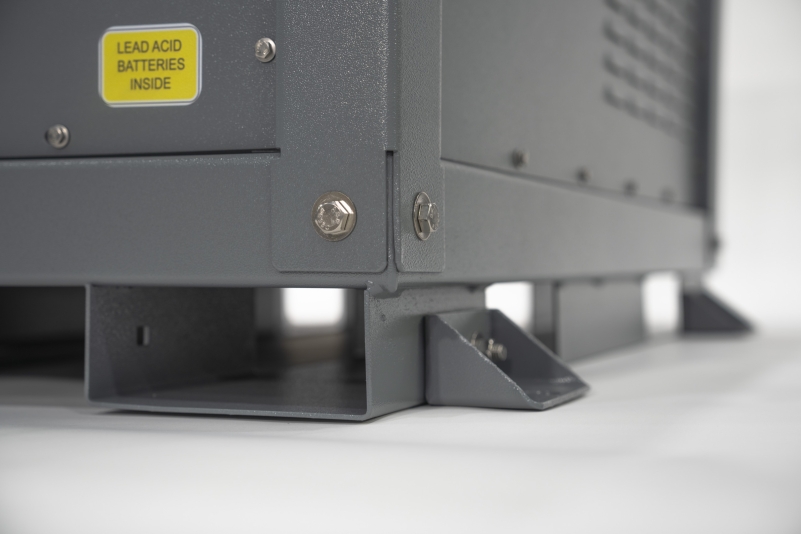

ChargePak Portable Battery Testing System (BTS)

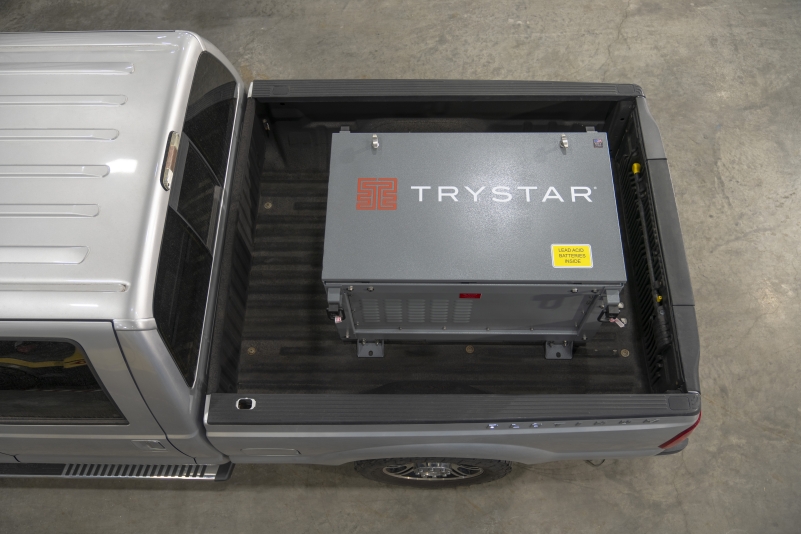

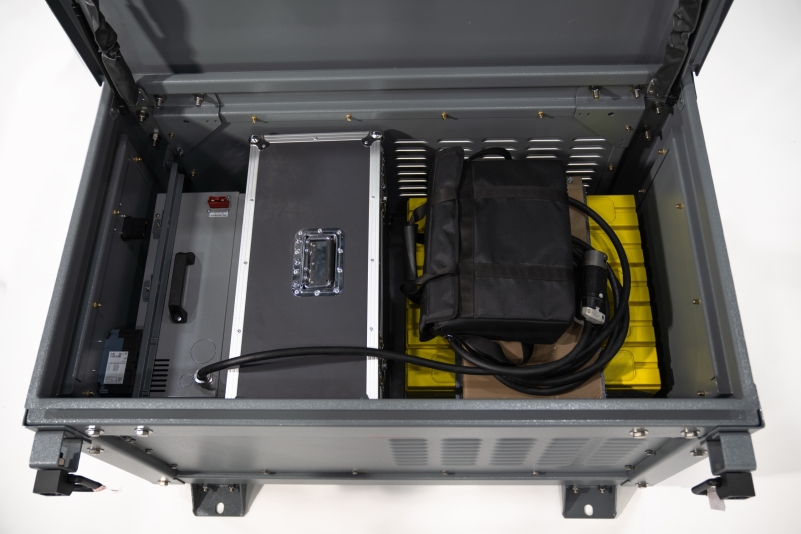

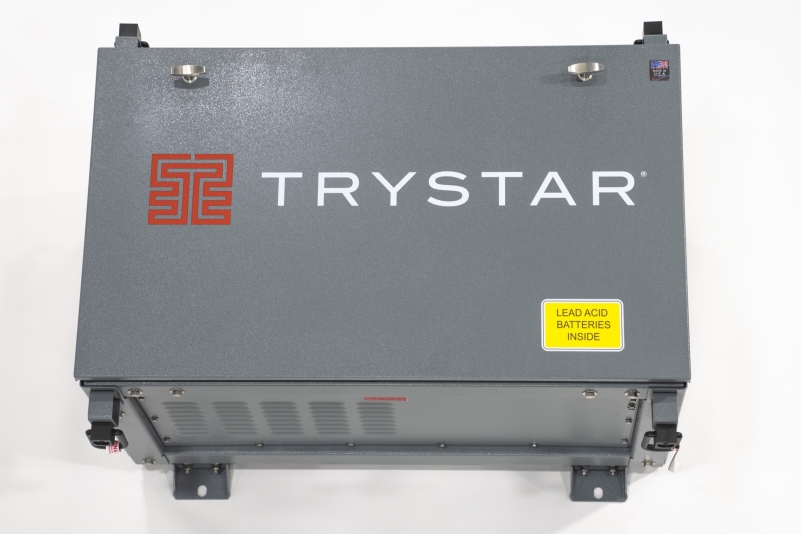

The Trystar ChargePak Portable Battery Testing System (BTS) is a fully integrated solution designed to simplify, accelerate, and document NERC PRC-005 and IEEE 450-compliant substation battery testing. Combining a portable battery charger, load bank, a bank of 125Vdc-50AH batteries and an integrated cabling system, ChargePak eliminates manual setup and battery movement. Its plug-and-play design minimizes human error, while robust VRLA lead-acid construction ensures durability in harsh conditions. Built for reliability, accuracy, and safety, ChargePak streamlines maintenance, reduces downtime, and ensures full regulatory compliance.
Product Specifications
Features and Benefits

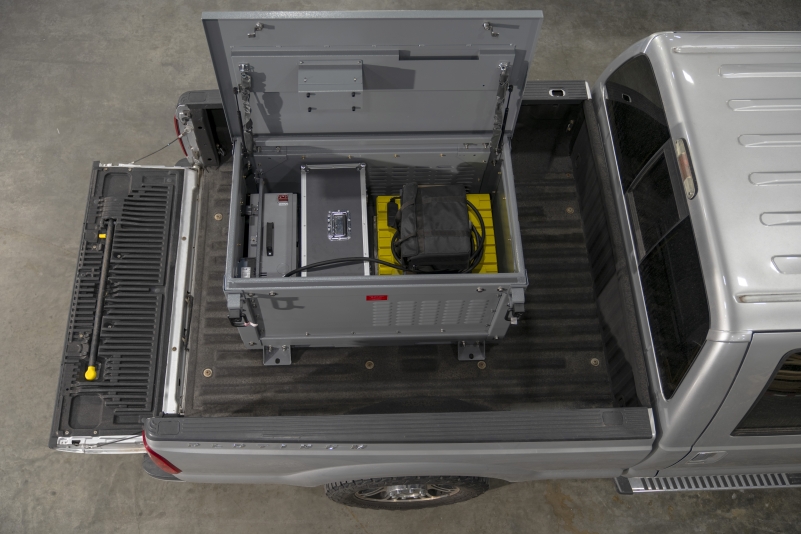

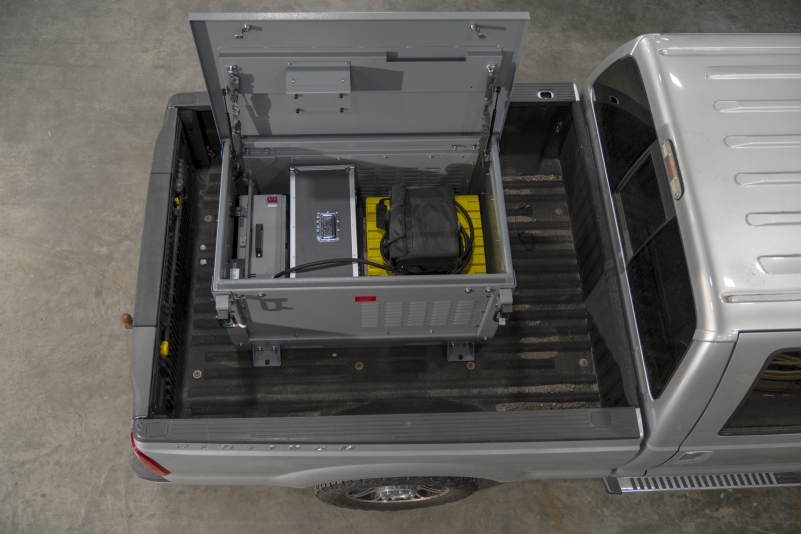

- Fully Integrated Testing Platform – Combines portable battery charger, load bank, and battery bank in one portable unit for faster setup and reduced labor.
- Preassembled 125Vdc-50AH Battery – Provides immediate power for medium-voltage breakers and substation loads during testing.
- Rugged VRLA Lead-Acid Construction – Pure lead plates resist corrosion, extend life, and perform reliably in extreme weather.
- Plug-and-Play Connections – Keyed connectors prevent incorrect hookups, minimizing human error and increasing safety.
- Advanced Cabling System – 50 ft. extra-flexible DC cables on reels and cleat-mounted AC cables streamline field operations.
- Lightweight, Multi-Purpose Charger – Charges service and station batteries or serves as a backup unit for redundancy.

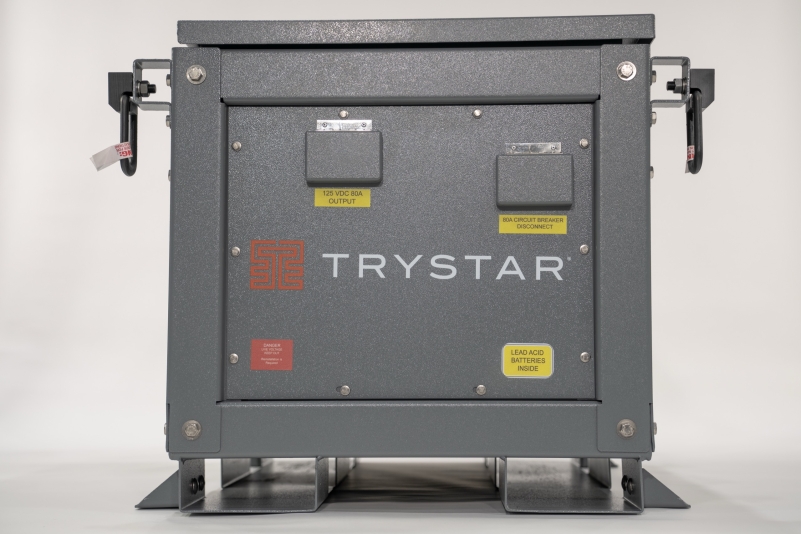

- Durable NEMA 3R Enclosure – Shields components from rain, dust, and outdoor contaminants, ensuring reliable performance.
- Comprehensive Alarms & Monitoring – Provides automatic alerts for voltage, rectifier, and fan failures to prevent costly downtime.
Performance Specs
- Battery Type – Preassembled 125Vdc-50AH battery with VRLA (Valve Regulated Lead Acid) pure lead plates
- Function – Integrated battery charger, load bank, and cabling system for portable battery testing
- Cabling – DC cables: 50 ft. extra-flexible, reel mounted; AC cables: cleat-mounted to load bank and charger
- Connectors – Keyed plug-and-play connectors ensure proper orientation and prevent misconnection
- Battery Charger – Featherweight charger for service and station batteries; usable as a spare charger
- Enclosure Rating – NEMA 3R outdoor-rated protective housing
- Battery Charger Alarm Signals – Battery Test Failure, Low DC Voltage, Rectifier Fail, High DC Voltage, High DC Voltage Shutdown, Fan Failure
- Battery Charger Warnings – AC Fail Alarm (power failure)
- Dimensions (L × W × H) – 63.31” × 35.72” × 24.75”
- Transport Weight – 900 lbs
- Operating Temperature – -4°F to 113°F
- Storage Temperature – 60°F to 72°F
- Humidity Rating – Up to 95% relative humidity (non-condensing)
- Pollution Degree – 2
- Codes & Standards – NERC PRC-005 / IEEE 450
- Input Voltage – 120V, 208V, 230V, 240V single-phase, 50–60 Hz
- Output Voltage – 24V, 48V, 125V, 250V, 380V, 480V DC / <5%
- Power Factor – 0.99
- Efficiency – 92%
- Total Harmonic Distortion (THD) – ±0.5% @ +10/-12% input voltage, ±5% frequency, 0–100% load
- Static Load Regulation – ≤1% from 10–90% on resistive load
- Dynamic Load Regulation – <100mV @ 136Vdc and 30mV @ 27Vdc and 56Vdc
- Output Ripple – Soft start; current limit adjustable from 5–100% of rated value; AC and DC output breaker
- Surge Suppression – Installed on both input and output circuits
