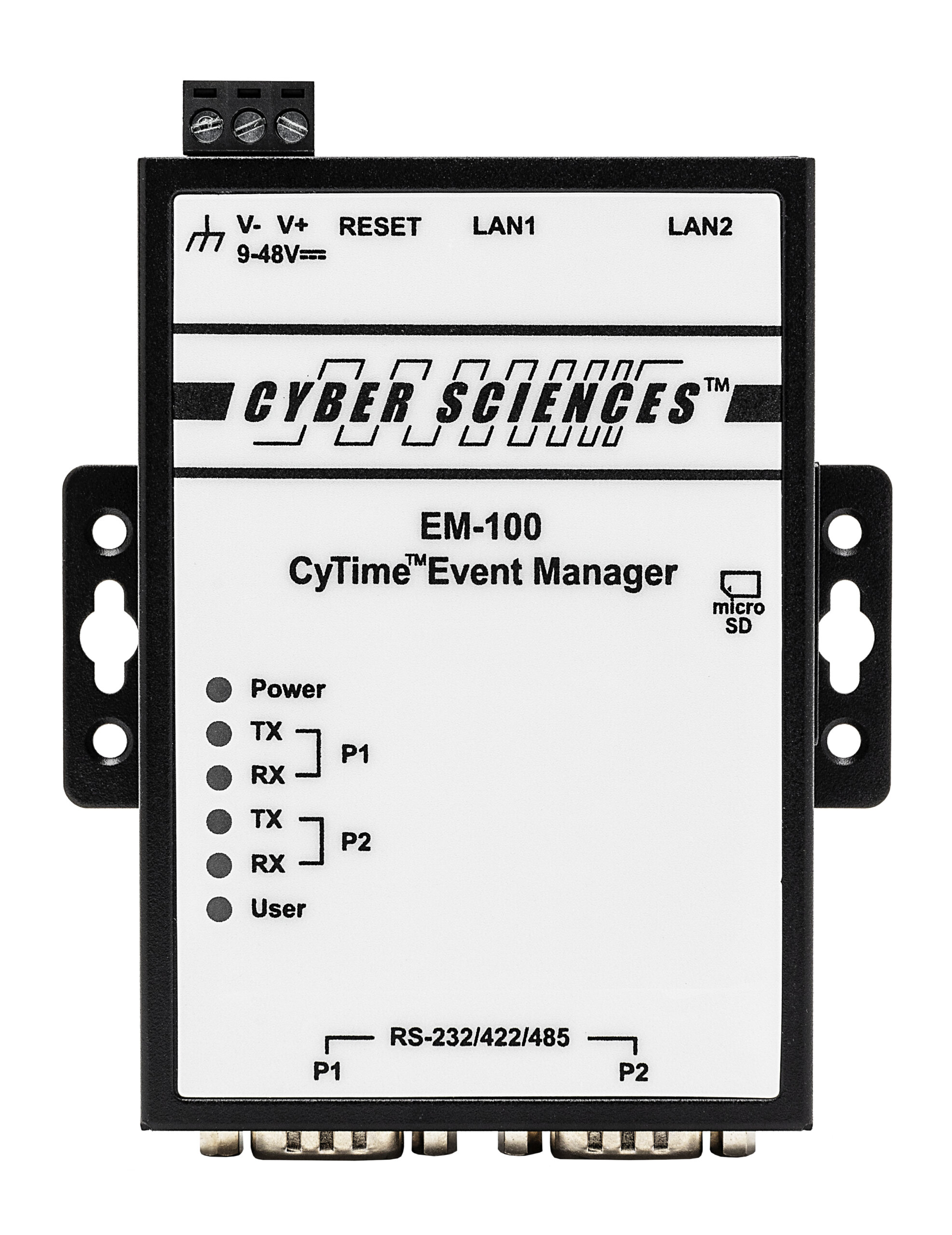

CyTime Event Manager (EM-100)
The CyTime™ Event Manager (EM-100) centralizes monitoring and analysis of multiple Sequence of Event Recorders (SERs) into one intuitive web interface. It consolidates events from all connected SERs, enabling powerful incident reconstruction, faster root-cause identification, and quicker power restoration for critical facilities. With remote firmware updates, customizable templates, event log consolidation, and full I/O status visibility, the EM-100 reduces complexity while improving accuracy and efficiency. Its DIN rail-mounted hardware, flexible license-based scalability, and secure communications make it an essential tool for utilities, data centers, healthcare, and other mission-critical operations.
Features
- Centralized SER Monitoring – View and manage I/O status for multiple Sequence of Event Recorders through one unified, web-based interface.
- Event Consolidation for Faster Analysis – Combines logs from all downstream SERs to reconstruct incidents, speeding up root-cause identification and reducing downtime.
- Remote Firmware & Configuration Management – Update firmware, adjust time synchronization, and manage I/O settings remotely for all connected SERs, saving time and labor.
- Customizable Templates – Create and apply templates for consistent settings such as input naming and time sync protocols, streamlining large deployments.
- Secure Access & Password Control – Manage passwords across all connected devices, enhancing system security and simplifying credential management.
- Comprehensive Event Logs & Diagnostics – View detailed logs and perform system diagnostics across all SERs from a single access point, improving operational efficiency.
- Scalable Licensing – Choose configurations supporting 25 to unlimited SERs with flexible software licensing, ensuring adaptability to project needs.
- Rugged & Compliant Design – DIN rail-mounted hardware with wide operating temperature range, EN/IEC/UL compliance, and hazardous location certification ensures reliability in demanding environments.
Specifications
- Electrical – Control Power:
Voltage, operating: 9 to 48 VDC
Power Consumption: 4 W
Input Current: 0.45 A @ 9 VDC, 0.084 A @ 48 VDC - Communications:
Ethernet Interface: 10/100/1000 Mbps
HTTP: TCP Port 80, W3C Standard Compliant
Modbus: TCP Port 502 (client port only between event manager and SER)
FTP: TCP Port 21 (client port only between event manager and SER) - Memory:
Storage: 8 GB (non-volatile)
Memory: 512 MB (volatile, for application execution) - Mechanical:
Mounting: DIN rail (EN 50022, 35 mm x 15 mm)
Dimensions (W x H x D): 3.90 x 4.37 x 1.00 in (99 x 111 x 25.5 mm)
Weight: 0.64 lb (290 g) - Environmental:
Temperature (Operating): -40 to 75°C (-40 to 167°F)
Temperature (Storage): -40 to 85°C (-40 to 185°F)
Humidity rating: 5% to 95% (non-condensing) - Regulatory Compliance:
Safety: EN 60950-1: 2013, IEC 60950-1: 2013, UL 60950-1
EMC: EN 55032/24: 2016
EMI: CISPR 32, FCC Part 15B Class A
Hazardous Locations: Class I Division 2, IECEx Zone 2: 2019, ATEX Zone 2 - Sustainability:
Directive EU/2011/65 + 2015/863 (RoHS)
Directive 2012/19/EU, Category 6 (WEEE) - Ordering Information:
EM-100-25: Event Manager, DIN Rail Mount (25 Unit Support)
EM-100-UNL: Event Manager, DIN Rail Mount (Unlimited Unit Support)
EM-100-UPG: Event Manager Upgrade (25 to Unlimited Support)
