Load Bank/Output Docking Stations

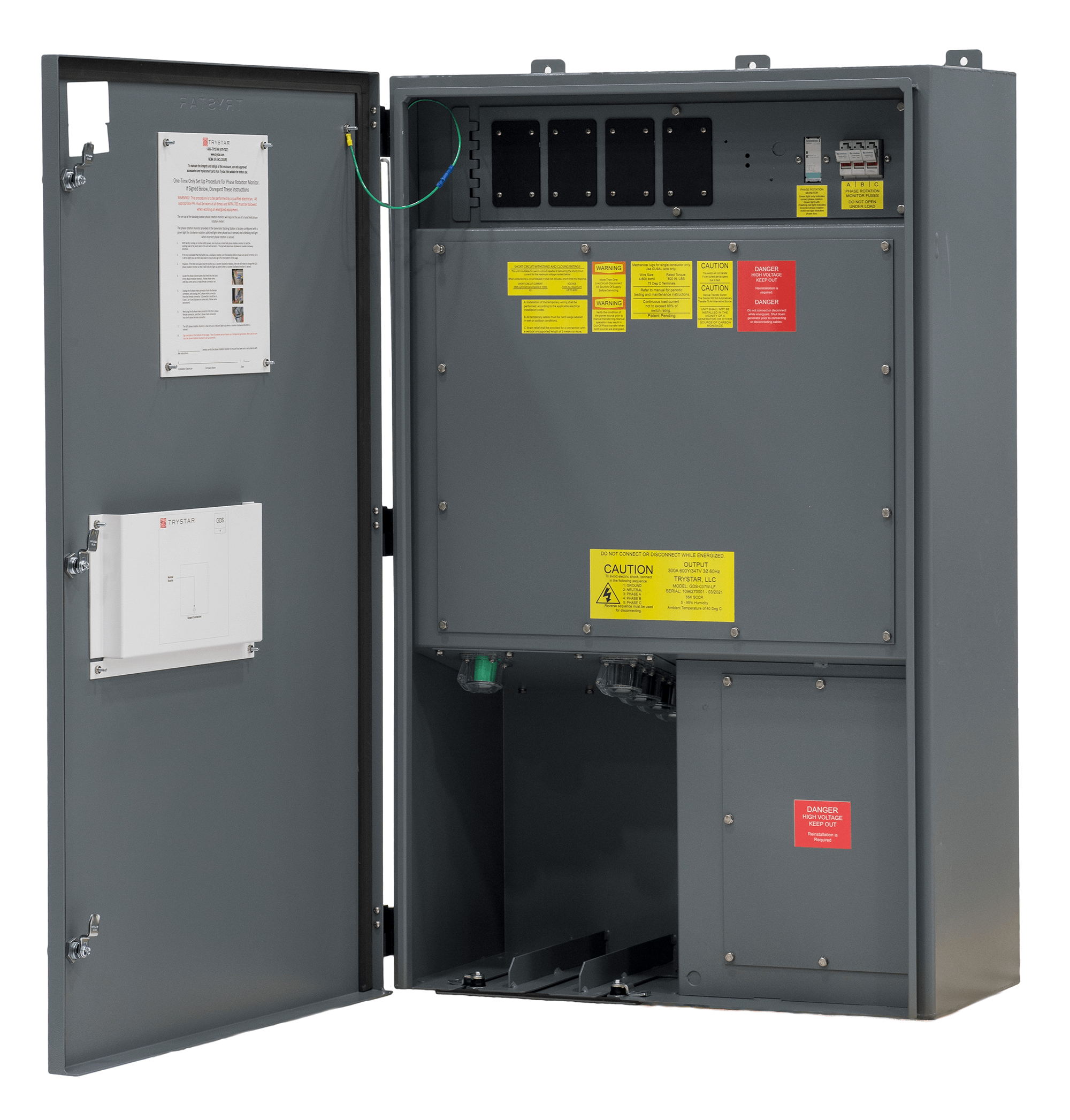

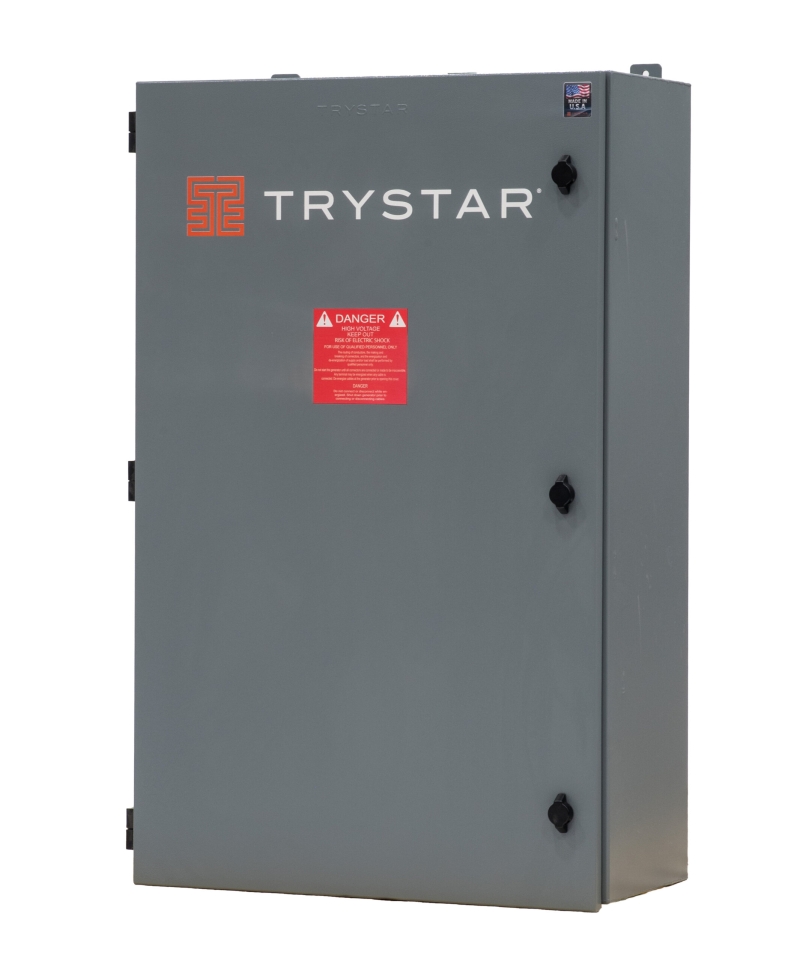

The Trystar Load Bank Docking Station provides a safe, efficient, and code-compliant solution for testing and maintaining permanent generators and critical power systems. By offering a standardized connection point, it eliminates the need for complex wiring setups, allowing load banks to be connected quickly and securely for routine or emergency testing.
Regular load testing is vital to verify generator performance, confirm capacity, and identify potential issues before they become failures. With integrated safety interlocks, grounding provisions, and tamper-resistant construction, Trystar’s docking stations ensure testing can be conducted safely while protecting technicians and equipment.
Engineered for industries with stringent regulatory requirements—including healthcare, utilities, telecom, and data centers—these stations support real-world load simulation to maintain compliance, operational readiness, and peace of mind. Built with durable materials and universal compatibility, the Trystar Load Bank Docking Station is an essential tool for facilities that depend on reliable backup power.
Features
- Effortless Load Bank Connection – Provides a dedicated, secure interface for load banks, enabling fast, hassle-free generator testing without disrupting ongoing operations.
- Reliable, Code-Compliant Performance – Meets NFPA 110 standards and other industry regulations, ensuring that backup power systems undergo proper load testing to verify performance, safety, and compliance.
- Durable and Secure Design – Engineered for harsh environments with corrosion-resistant enclosures, tamper-resistant locking mechanisms, and high wind and seismic ratings, delivering long-term reliability in critical applications.
- Reduced Downtime and Labor Costs – Streamlines the testing process by removing the need for manual connections, helping facilities cut labor costs while minimizing operational interruptions.
- Enhanced Safety Features – Integrated safety interlocks and grounding provisions protect both technicians and equipment during load testing procedures.
- Proven Reliability for Critical Facilities – Trusted in healthcare, utilities, telecom, and data centers to keep backup power systems ready, compliant, and dependable when it matters most.
Specifications
- Ampacity: 100A – 5000A
- Voltage Options: Up to 600V
- Frequency: 50 / 60Hz
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Humidity Rating: 5% – 95% RH (non-condensing)
- Codes/Standards: ETL, UL 1008, UL 50

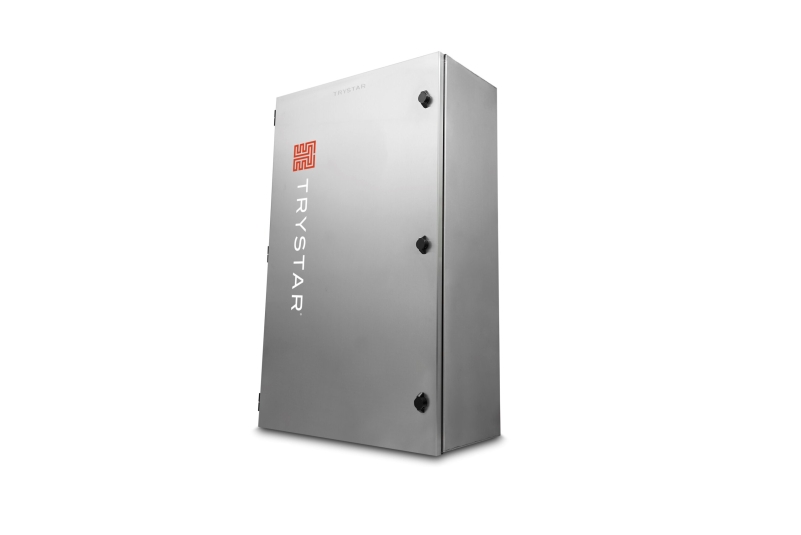

- Enclosure Types: NEMA 3R (powder-coated aluminum) NEMA 4X (304 or 316 stainless steel)
- Bus Bar: Silver-plated copper / Tin-plated copper (for wastewater facilities)
- Enclosure Dimensions (H × W × D):

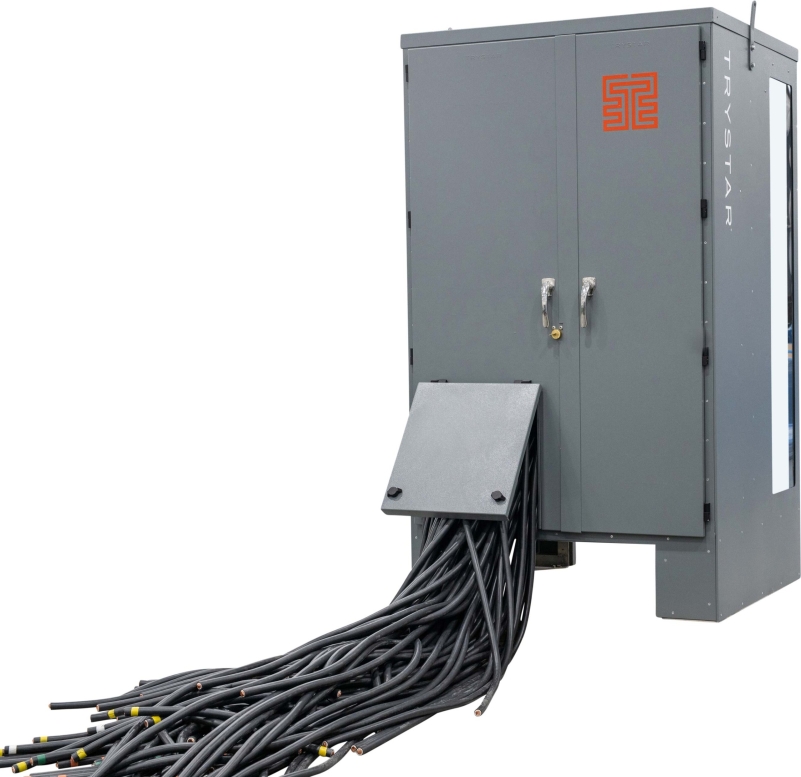

Padmount Options:
– Dual Padmount: 84” × 96.5” × 43”
– Deluxe Padmount: 90” × 78.5” × 43”
– Padmount Extra Depth: 84” × 48” × 61”
– Padmount: 84” × 48” × 43”
Wall-Mount Options:
– Large: 60” × 48” × 19.5” – Medium: 54” × 40” × 16.5”
– Small: 48” × 30” × 16.5”
Flange-Mount Options:
– Large: 78” × 52” × 21.3”
– Medium: 70” × 44” × 18.3”
– Small: 64” × 34” × 18.3” - Notes: Dimensions may vary depending on application or specifications. One-line drawings available upon request.
